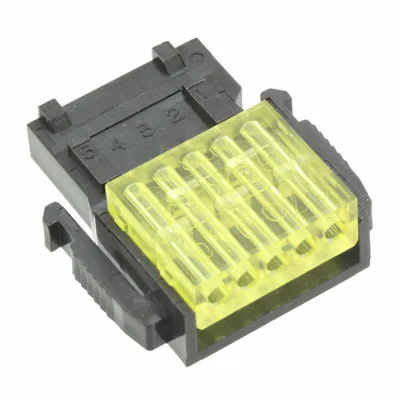

3M 3mm IDC 5Pos Yellow Power Clamp Wiremount Socket (35505)

Description

3M 3mm IDC 5Pos Yellow Power Clamp Wiremount Socket (35505) is a high-quality connector designed for efficient and reliable electrical connections. It features 5 positions and utilizes Insulation Displacement Contact (IDC) technology for quick and easy termination.

KEY FEATURES AND BENEFITS:

• Fast and Easy Installation: IDC technology eliminates the need for wire stripping and tinning, significantly reducing installation time and labor costs.
• Reliable Connections: IDC contacts ensure a secure and reliable electrical connection.
• Versatile Applications: Suitable for a wide range of applications including wire-to-board, wire-to-wire, and wire branching connections.
• Compact Design: Offers a space-saving solution for various wiring needs.

SPECIFICATIONS:

• Number of Positions: 5
• Contact Type: IDC (Insulation Displacement Contact)
• Wire Size: 20 AWG (1.6-2.0mm)
• Color: Yellow
• Number of Contact Rows: 1

HOW TO USE:

• Prepare the Wire: Ensure the wire end is clean and free of any debris.
• Insert the Wire: Insert the stripped end of the wire into the appropriate socket position.
• Engage the Contact: The IDC contact will automatically penetrate the wire insulation and make a secure connection.
• Secure the Socket: If applicable, secure the socket to the desired location using the appropriate mounting method.

BENEFITS OF USING 3M 3MM IDC 5POS YELLOW POWER CLAMP WIREMOUNT SOCKET (35505):

• Increased Productivity: Reduced installation time leads to increased productivity and efficiency.
• Improved Reliability: Secure connections minimize the risk of electrical faults and downtime.
• Cost Savings: Eliminates the need for specialized tools and labor-intensive wire preparation.

FEATURES:

• High-Quality Materials: For durability and long-term performance.
• Designed for Use with 20 AWG Wire
• Ideal for Various Wiring Applications
