Description

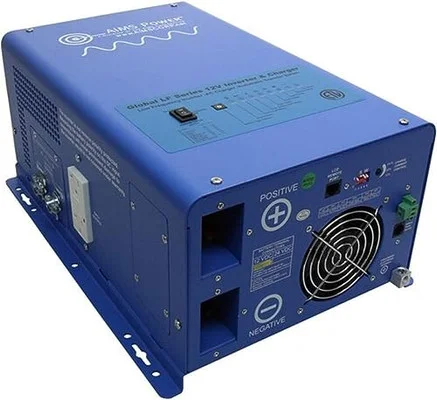

AIMS Power 1000 Watt Pure Sine Low-Frequency Inverter Charger (PICOGLF10W12V120V) is a versatile, high-performance power solution designed for small industrial applications, off-grid backup power, and recreational use. Perfect for powering essential appliances during emergencies, this inverter charger is ideal for off-grid homes, solar systems, RVs, boats, campsites, and tailgating events. This inverter charger can be used globally, thanks to its auto-frequency detection. It features a dual GFCI outlet, battery priority mode, and low-voltage shutdown to protect your batteries. Whether you need a reliable off-grid solution or a backup power source for your business, home, or RV, this AIMS Power inverter is designed to provide consistent, safe, and efficient power.
Key Features:
- 1000W continuous output, 3000W surge (20 seconds)
- Battery priority selector for direct battery use
- 35A multi-stage smart charger for gel, AGM, and LiFePO4 batteries
- Marine-coated for protection against corrosion
- GFCI outlet (10A), ideal for safety
- Auto frequency detection for worldwide use
- Power saver mode with 25W hibernation
- Selectable 7 battery type settings for optimal charging
- Optional remote panel for convenient operation
- Automatic transfer switch with 10ms transfer time
Specifications:
Inverter Output:
- Continuous Output Power: 1000W
- Surge Rating: 3000W (20 seconds)
- Output Waveform: Pure Sine (Bypass Mode)
- Nominal Efficiency:>88%
- Line Mode Efficiency:>95%
- Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical Transfer Time: 10ms
- THD: < 10%
Input Specifications:
- Nominal Input Voltage: 12.0VDC
- Minimum Start Voltage: 10.0VDC
- Low Battery Alarm: 10.5VDC–11.0VDC
- Low Battery Trip: 10.0VDC–10.5VDC
- High Voltage Alarm: 16.0VDC
- Low Battery Voltage Restart: 13.3VDC
- Idle Consumption: < 12.5W
- Power Saver Mode Idle Consumption: < 7.5W
Charger Specifications:
- Output Voltage: Depends on Battery Type
- Charger Rate: 35A
- Overcharge Protection: 15.7V
- Charge Current Adjustability: Off, 20%, 100%
- Four-Stage Smart Charger
Transfer Switch:
- 30A Automatic Transfer Switch
- Transfer Time: 10ms (max)
Dimensions & Weight:
- Unit Weight: 35 lbs
- Unit Dimensions (L x W x H): 14.1 x 8.74 x 7.10 inches
- Shipping Weight: 39 lbs
- Shipping Dimensions (L x W x H): 20.75 x 12.75 x 12.50 inches
