Description

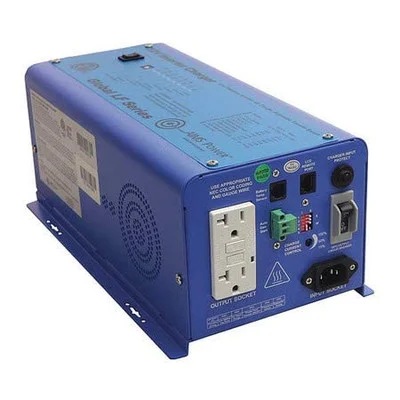

AIMS Power 600W Pure Sine Inverter Charger is a versatile, high-performance solution that combines an inverter, battery charger, and AC auto-transfer switch in a single unit. ETL is listed and compliant with UL 458 standards, and this inverter provides efficient DC-to-AC conversion with a peak efficiency of 80%. It features multi-stage smart charging and pure sine wave output, which ensures clean, stable power for sensitive electronics and tools.
Designed with advanced features like AC/Battery priority switching, auto generator start, and a selectable power-save mode, it offers excellent flexibility for renewable energy systems. This inverter charger is capable of charging GEL, Lead, AGM, and Lithium batteries, making it ideal for mobile, off-grid, and emergency backup power needs.
Key Features:
- 600W continuous output power
- 1800W surge for 20 seconds (300% surge capacity)
- Pure sine wave output for clean, stable power
- Multi-stage smart charger (20A) with 7 battery type settings
- AC/Battery priority modes for backup or renewable energy systems
- Auto generator start for low battery voltage
- GFCI outlet and marine-rated conformal coating
- Remote panel available for easy control
- 25W selectable power save (hibernation) mode
- Automatic transfer switch with less than 10ms transfer time
- Adjustable charge current from 20% to 100%
Specifications:
- Continuous Output Power: 600W
- Surge Power: 1800W (20 seconds)
- Output Voltage: 120V AC
- Nominal Efficiency: 80% (Peak)
- Line Mode Efficiency:>95%
- Output Frequency: 50Hz ± 0.3Hz / 60Hz ± 0.3Hz
- Typical Transfer Time: <10ms>
- Total Harmonic Distortion (THD): <10>
- Nominal Input Voltage: 12V DC
- Minimum Start Voltage: 10V DC
- Low Battery Alarm: 10.5V – 11.0V
- Low Battery Trip: 10.0V – 10.5V
- Charger Output: 20A
- Overcharge Protection Shutdown: 15.7V
- Unit Dimensions (L x W x H): 14.75″ x 7″ x 5.5″
- Unit Weight: 18 lbs
- Shipping Weight: 20 lbs
