Description

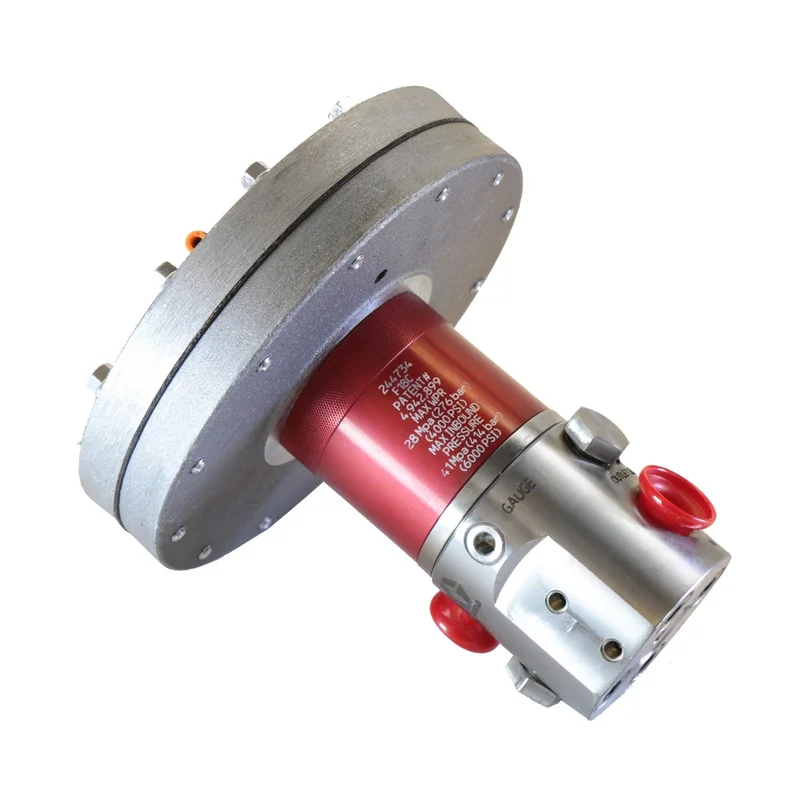

These regulators control downstream pressure for mastic or semi-solid material. Install a regulator ahead of each spray gun or extruder gun in a multiple outlet system. The regulator provides precise pressure control to each spray gun from a common header system. It also dampens flow surges when line valves are opened and during pump stroke changeover.
UPC Product: 00633955716421 Family Code: FAMAPA Unit of Measure: EA Height: 18 IN |45.72 CM Length: 9.6 IN |24.384 CM Width: 9.6 IN |24.384 CM Volume: .96 FT3 |.027 M3 Chargeable Weight: 13.4 LBS | 6.08 KG
Technical Specifications
| Actuation Type | Air |
|---|---|
| Compatible Material | Waterborne |
| Gauge Port Type | NPT |
| Inlet Size (cm) | 0.9525 |
| Inlet Size (in) | 3/8 |
| Inlet Size (mm) | 9.525 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 2 |
| Maximum Flow Rate (L/min) | 7.57 |
| Maximum Regulated Pressure (bar) | 276 |
| Maximum Regulated Pressure (kPa) | 27600 |
| Maximum Regulated Pressure (psi) | 4000 |
| Maximum Viscosity (cP) | 15000 |
| Maximum Working Pressure (bar) | 414 |
| Maximum Working Pressure (kPa) | 41400 |
| Maximum Working Pressure (psi) | 6000 |
| Minimum Regulated Pressure (bar) | 34 |
| Minimum Regulated Pressure (kPa) | 3400 |
| Minimum Regulated Pressure (psi) | 500 |
| Outlet Size (cm) | 0.9525 |
| Outlet Size (in) | 3/8 |
| Outlet Size (mm) | 9.525 |
| Outlet Thread Type | NPT |
| Wetted Material | Stainless Steel, Passivated Stainless Steel, Nickel, Cobalt, Tungsten Carbide, PTFE |
| Application | Bonding, Sealing, Gasketing, Encapsulation, Thermal Management, Molding, Spray, Fluid Transfer, Unloading, Underfill, Infusion, Metering, Regulating |
| Type | Fluid Regulator |
| Flow Control Type | Regulation |
| Maximum Regulated Pressure (MPa) | 28 |
| Maximum Working Pressure (MPa) | 41 |
| Minimum Regulated Pressure (MPa) | 3.4 |
