American Autowire 53-62 Chevy Corvette Classic Update Kit (AAW510267)

Description

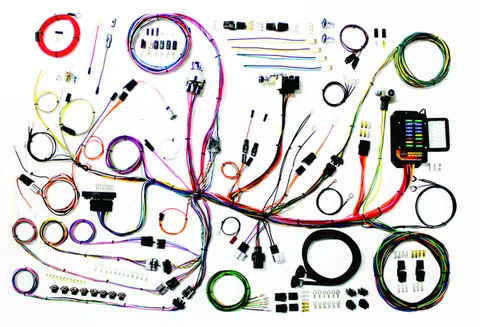

The American Autowire 53-62 Chevy Corvette Classic Update Kit (AAW510267) is a complete, vehicle-specific wiring harness designed to replace and modernize the entire electrical system of your 1953-1962 Corvette. This kit provides a robust electrical foundation capable of supporting popular modifications and aftermarket accessories. Built with modern GXL wire and clearly labeled circuits, it ensures a straightforward and accurate installation from headlight to taillight. Whether for full restoration or restomod projects, this kit delivers a safe, reliable, and professional-quality electrical system.

KEY FEATURES AND BENEFITS:

• Supports Modern Upgrades: Provides circuits for EFI, high-output alternators, aftermarket gauges, and updated air conditioning systems, allowing seamless integration of new technology.
• Simplified Installation: Pre-built dash, engine, and rear light harnesses with wires labeled every 3-5 inches reduce installation time and minimize wiring errors.
• Improved Safety and Reliability: Includes ATO-style fuse panel and high-amperage mega fuse. GXL wire is heat and abrasion-resistant, ensuring a long-lasting, safe electrical system.
• Complete System Replacement: Replaces the entire wiring harness from engine bay to taillights, eliminating the need to splice into old, fragile wiring.
• Convenient Accessory Integration: Six-way power accessory plug provides a dedicated and easily accessible power source for aftermarket additions.

SPECIFICATIONS:

• Part Number: 510267 (AAW510267)
• Application: 1953-1962 Chevy Corvette
• Fuse Panel: Modern ATO-style with labeled cover
• Included Components:
• Pre-built dash harness
• Engine and front light harness
• Rear body harness
• 175 amp mega fuse kit with 6-gauge charge cable
• New ignition switch with indexed connector
• Replacement headlight switch with 26 amp internal circuit breaker
• New floor-mounted dimmer switch
• Original-replacement connectors, terminals, and lamp sockets
• Six-way power accessory plug
• Dash harness connector for 1969+ GM steering column with mating connector and terminals

HOW TO USE:

• Preparation: Disconnect the battery and carefully remove the old wiring harness, taking photos and notes of connections for reference.
• Fuse Panel Installation: Mount the new ATO fuse panel in the stock location using the original mounting points for a clean installation.
• Harness Routing: Start with the dash harness, followed by the engine/front light harness, and then the rear body harness. Use extra-long leads for custom routing.
• Component Connection: Connect labeled wires to their respective components, including ignition switch, dimmer switch, headlight switch, and gauges.
• Final Connections: Connect engine and front lighting harnesses, and route rear body harness to tail lights, fuel sender, and license plate lamp.
• Power Up: Connect the 175-amp mega fuse kit and 6-gauge charge cable to the high-output charging system. Reconnect the battery and test all electrical functions.

BENEFITS OF USING THE AMERICAN AUTOWIRE 53-62 CHEVY CORVETTE CLASSIC UPDATE KIT (AAW510267):

• Complete Overhaul: Full replacement of the car’s electrical system, eliminating old, potentially faulty wiring.
• Future-Proof Design: Supports a variety of aftermarket components and modifications, adaptable to future upgrades.
• Increased Safety: Modern fuse panel and high-quality GXL wire protect the vehicle from shorts and failures.
• Value Retention: Professional, modern wiring enhances reliability and can increase the vehicle’s value.

FEATURES:

• Exclusive gauge cluster disconnect system for stock and aftermarket instruments
• Front light harness with switched trigger wire for electric fan relay
• Original-style bulkhead connectors for clean dash-to-engine connection
• New ignition switch compatible with HEI and EFI upgrades
• Dash harness connector for 1969+ GM steering column with mating connector
• Headlight switch with internal 26 amp circuit breaker
• Rear body wiring with twist-in style sockets for stop and tail lights
• Dedicated ground lead for fuel tank sender for accurate fuel readings
