American Autowire Severe Duty Weatherproof Relay Panel (AAW510599)

Description

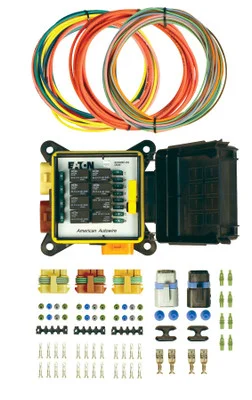

The American Autowire Severe Duty Weatherproof Relay Panel (AAW510599) is a rugged electrical management system built to deliver reliable power distribution in harsh environments. Designed with a fully sealed enclosure, this panel protects against dust, moisture, and debris, making it an excellent choice for off-road vehicles, classic restorations, or any application requiring maximum durability. With eight high-capacity relays and a professional installation kit included, this system ensures your power accessories are securely managed while maintaining a clean and organized setup.

KEY FEATURES AND BENEFITS:

• Weatherproof Protection: Fully-sealed enclosure guards against moisture, dust, and debris for long-lasting reliability.
• High-Capacity Power Distribution: Delivers a total output rating of 180 amps to support multiple high-draw accessories.
• Individual Circuit Protection: Each of the eight 35-amp relays is paired with a 30-amp fuse for added safety and easier troubleshooting.
• Versatile Circuitry: Offers eight normally-open and six normally-closed ground-activated circuits for flexible wiring options.
• Simplified Installation: Includes GXL wire, sealed connectors, terminals, and plugs to eliminate sourcing extra components.

SPECIFICATIONS:

• Total Output Rating: 180 amps
• Relay Count: Eight 35 amp ground-triggered relays
• Fuse Count: Eight 30 amp fuses
• Circuit Types: Eight normally-open, ground-activated circuits; six normally-closed, ground-activated circuits
• Wire Included: Assorted GXL wire (18ga–10ga)
• Included Components:
• Fully-sealed relay box
• Five sealed connectors (two for input power, three for output circuits)
• All necessary terminals and seals
• Cavity plugs for unused circuits

HOW TO USE:

1. Mounting: Install the relay box in a secure, protected, yet accessible location in your vehicle.
2. Input Power Connection: Attach the two input power wires to the vehicle’s main power source, ensuring proper gauge for the load.
3. Accessory Wiring: Connect accessory wires to the output circuits using the included color-coded GXL wire.
4. Ground Connection: Run a ground wire from the relay panel to a solid chassis ground point.
5. Signal Wiring: Connect the ground-triggered signal wires to the appropriate trigger points to activate the relays.
6. Seal and Plug: Use provided seals for all connections and insert cavity plugs into unused ports to maintain weatherproofing.

BENEFITS OF USING THE AMERICAN AUTOWIRE SEVERE DUTY WEATHERPROOF RELAY PANEL (AAW510599):

• Provides a centralized hub for clean and organized power distribution.
• Enhances safety by consolidating all fuses and relays into one accessible unit.
• Weatherproof design ensures reliable operation under extreme conditions.
• Simplifies troubleshooting and future modifications with a clearly labeled layout.
• Improves the overall appearance of the vehicle by reducing wiring clutter.

FEATURES:

• Compact, fully sealed weatherproof enclosure.
• Ground-triggered relay activation.
• Kit includes all required terminals, seals, and plugs.
• Color-coded GXL wire for easy identification.
• Modular design with five sealed connectors.
• Supports both normally-open and normally-closed circuits.
• Engineered for rugged environments and off-road applications.
• Relay and fuse combination in a single protected unit.
