Description

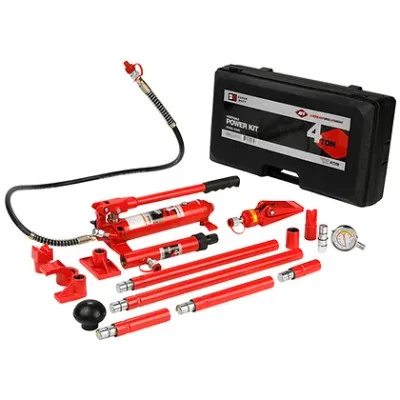

The American Forge & Foundry 4T Super Duty Body & Frame Repair Kit (816SD) is a comprehensive solution engineered for professional and demanding automotive body and frame repair tasks. This kit provides all the essential tools required for effectively pushing, spreading, and pressing vehicle body panels, parts, and assemblies, making it an indispensable asset in collision repair shops. Its robust construction and thoughtful design features ensure reliability and ease of use, even in challenging work environments.
KEY FEATURES AND BENEFITS:
- Complete Repair Capability: Provides all the necessary tools for pushing, spreading, and pressing of vehicle body panels, parts, and assemblies, ensuring versatility for a wide range of repair needs.
- Effortless Setup: The auto air bleed pump eliminates the need to bleed the system prior to use, streamlining your workflow and saving valuable time.
- Enhanced Longevity: Features a chrome-plated pump core and piston rod, significantly increasing the durability and operational life of the unit.
- Superior Hose Protection: Equipped with a double braided hydraulic hose that offers robust protection against abrasion and heavy wear, ensuring consistent performance.
- Universal Compatibility: Attachments are designed to be interchangeable with other body and frame kits from various brands, maximizing utility and integration with existing tools.
- Convenient Portability: Comes with a durable case for easy and secure transport, allowing you to move the kit between different work areas or job sites with ease.
- Assured Safety: Meets or exceeds ASME/PASE 2014 safety standards, providing confidence in its safe operation and compliance with industry regulations.
SPECIFICATIONS:
- Included in Product when purchased:
- 8163: 5’ Hydraulic Hose
- 8161: 4 Ton Hydraulic Ram
- 8162: 4 Ton Hydraulic Hand Pump
- 8170: 1/2 Ton Spreader Ram
HOW TO USE:
- Preparation: Ensure the vehicle or component needing repair is stable and securely positioned. Remove any obstructions that might interfere with the repair process.
- Select Components: Choose the appropriate hydraulic ram (4-ton for pushing/pressing, 1/2-ton spreader for spreading) and select the necessary extension tubes and attachments based on the specific repair task.
- Assemble the System: Connect the chosen ram to the 5’ hydraulic hose (8163), and then connect the hose to the 4-ton hydraulic hand pump (8162). Ensure all connections are secure.
- Position the Tools: Place the assembled ram and attachment against the vehicle panel or component that needs to be pushed, spread, or pressed. Ensure stable contact points for both the ram and the supporting surface.
- Operate the Pump: Use the handle of the hydraulic hand pump to slowly and steadily pump, applying pressure. Observe the panel’s movement carefully. The auto air bleed pump will manage air in the system automatically.
- Monitor Progress: Continuously check the alignment and shape of the panel as pressure is applied. Stop pumping as soon as the desired form or position is achieved. Avoid over-extending or over-pressing.
- Release Pressure: To release the pressure and retract the ram, locate the release valve on the hydraulic hand pump and slowly open it. Allow the ram to retract fully before disconnecting.
- Disassemble and Store: Once the repair is complete, disassemble the components, clean them, and return them to the included case for proper storage, ensuring they are ready for future use.
BENEFITS OF USING AMERICAN FORGE & FOUNDRY 4T SUPER DUTY BODY & FRAME REPAIR KIT (816SD):
- Provides a versatile tool for various tasks, from gentle panel shaping to aggressive frame straightening, all within one kit.
- Reduces setup time with the intuitive auto air bleed pump design for faster and more efficient work.
- Ensures long service life with chrome-plated components and a double-braided hose that withstand rigorous use.
- Compatible with attachments from other kits, offering flexibility if you already own different brands of repair equipment.
- Organized and easy transport using the included portable case, keeping tools ready and accessible at all times.
FEATURES:
- Comprehensive 17-piece kit for varied repair applications
- Integrated auto air bleed pump for simplified operation
- Ram features a 4-ton capacity for substantial force
- Spreader ram provides 1/2-ton spreading capability
- Hydraulic pump utilizes an automatic overload protection system
- Piston rod and pump core are chrome-plated for enhanced component life
- Hydraulic hose is double braided for increased resilience against wear
- Heavy-walled extension tubes offer resilience for demanding tasks
- Wide array of interchangeable attachments included
- Portable blow-mold storage case for organization and transport
- Adheres to ASME/PASE 2014 safety standards
- Extended handle on pump for reduced user effort
