Annovi Reverberi – XTV3G22N 3/2200 3400RPM Pump

Original price was: $791.87.Current price is: $158.37.

SKU: 7329075200191 Category:

Description

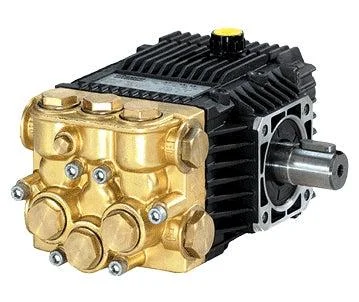

The XTV3G22N Pump is rated 3 GPM at 2200 PSI and spins at 3400 RPM.
This unit made by Annovi Reverberi is one of the most common replacement pumps that is produced for the pressure washer industry.
The XTV3G22N Pump has a forged brass head, solid ceramic plungers, stainless steel valves as well as state of the art rubber for the seals.
All this combines with a special alloy used in constructing the rods and over sized and specially formulated connecting pins to give superior performance and long life to this replacement pump.
The pump can be fitted with specialized kits to get the liquid temperatures up to 180 degrees F. AR has also made the wet end repair of this unit very simple to do, with no special tools or training needed to complete the task.

Should you need parts to repair your XTV pump click here for the parts breakdown.

SPECIAL NOTE On the Oil Usage for the XTV3G22N: Use AR64516 Oil (click link to view/purchase oil). First change oil after 50 hours of use. Then only every 500 hours.
Features

  • GPM – 3
  • LPM – 114
  • PSI – 2200
  • BAR 150
  • Power EBHP – 4.5
  • Max Temp 140 Degrees F.
  • Inlet – 1/2″ F
  • Outlet – 3/8″ F
  • Oil capacity 10 oz.
  • Bore Dia – 15 mm
  • Stroke Dia – 7.2 mm
  • Weight – 11lbs
