Description

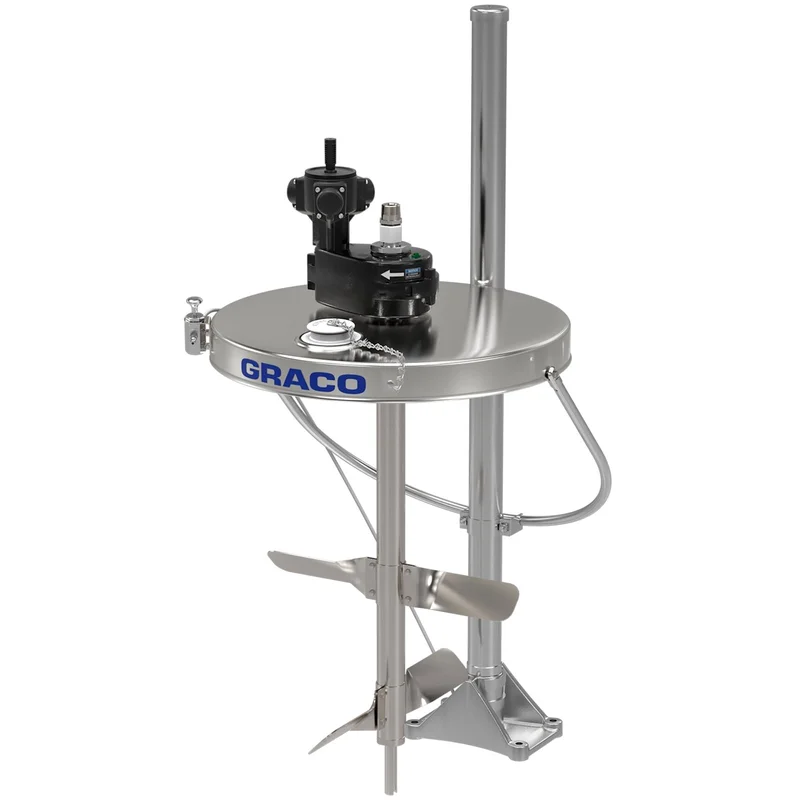

Speed up savings when agitating high viscosity material. The radial piston air motor that powers this back-geared agitator uses up to 85 percent less compressed air than a comparable rotary vane motor.
For agitating 500 cP to 3000 cP viscosity materials
- Installs quickly for immediate cost savings
- Needs no air line lubrication to keep running well
- Operates more quietly than comparable rotary vane agitator air motors
- Connects to Graco’s Intelligent Paint Kitchen for agitator speed monitoring and control
UPC Product: 00769946188646 Family Code: FAMCNV Unit of Measure: EA Height: 0 IN |0 CM Length: 0 IN |0 CM Width: 0 IN |0 CM Volume: 0 FT3 |0 M3 Chargeable Weight: 0 KG | 0 LBS
Technical Specifications
| Air Inlet Size (cm) | 0.635 |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPT |
| For Use With | 55 加仑（208 升）料桶, 55 Gallon (208 Liter) Drum, Bidón de 55 galones (208 litros) |
| Includes | 升降机和桶盖, Elevator and drum cover, Cubierta del elevador y del bidón |
| Maximum Air Inlet Pressure (bar) | 5 |
| Maximum Air Inlet Pressure (kPa) | 500 |
| Maximum Air Inlet Pressure (psi) | 70 |
| Maximum Speed (RPM) | 83 |
| Maximum Viscosity (cP) | 3000 |
| Maximum Working Pressure (bar) | 5 |
| Maximum Working Pressure (kPa) | 500 |
| Maximum Working Pressure (psi) | 70 |
| Motor Type | Pneumatic – Radial Piston |
| Power Rating (HP) | 0.16 |
| Weight (kg) | 14.1 |
| Weight (lb) | 31.1 |
| Wetted Material | Stainless Steel, Acetal, AF, Nylon, PTFE |
| Type | Agitator |
