Description

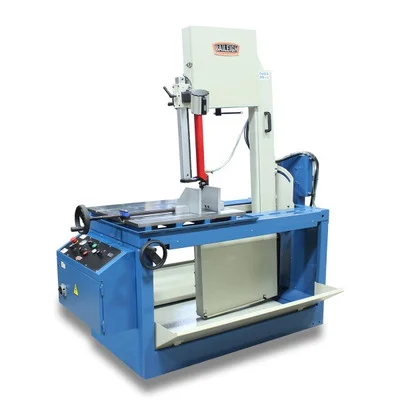

Baileigh 220V 3 Phase Vertical Tilting Band Saw Pneumatic Operation (1226643) is designed for precision and efficiency in industrial applications. This vertical tilting band saw features pneumatic operation, making it ideal for heavy-duty tasks. Powered by a robust 2 hp motor, this saw can handle a wide range of materials with ease.
The heavy-duty band saw boasts a versatile miter angle range from 45° to 0° to 45°, allowing for intricate cuts. With a maximum vise opening of 18″ and a throat depth of 16-1/4″. The integrated coolant pump ensures smooth operation and extended blade life.
- Specifications and Dimensions
- Stock Number: BA9-1226643
- Blade Guide: Bearing and Carbide
- Blade Length: 168.5″
- Blade Speed: 84 – 312 fpm
- Blade Thickness: 0.035″
- Blade Width: 1-1/16″
- Coolant Pump Motor: 1/8 hp
- Input Power: 220V 3-phase
- Maximum Vise Opening: 18″
- Miter Angle Range: 45° – 0° – 45°
- Model Number: BSVT-18P
- Motor: 2 hp
- Rectangle at 45 Degrees: 13-57/64″ x 16-1/4″ (Right) / 13-19/32″ x 16-1/4″ (Left)
- Rectangle Capacity: 20″ x 16-1/4″
- Shipping Dimensions: 82″ x 38.2″ x 87.7″
- Throat Depth: 16-1/4″
- Weight: 1510 lbs
- Key Features and Benefits
- Pneumatic operation for enhanced cutting efficiency
- 2 hp motor provides powerful performance
- Wide miter angle range for versatile cutting
- Integrated coolant pump extends blade life
- Large vise opening and throat depth accommodate big workpieces
- Sturdy construction for durability in industrial environments
