Description

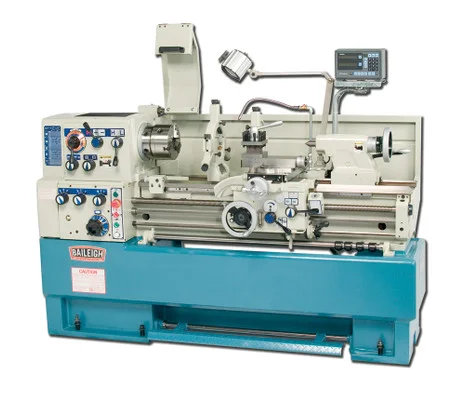

Baileigh 220V 3Phase 7-1/2 HP Precision Lathe (1006140) is the perfect combination of size and power for any metalworking shop. This lathe features a factory-installed Mitutoyo DRO for precise cuts and a heavy cast iron base to ensure rigidity and accuracy.
With 12 speeds ranging from 30 to 2,000 rpm and a 7.5 hp motor running on 220-volt 3-phase power, this 1006140 3Phase lathe offers versatility and reliability. The precision ground and hardened ways are built to withstand years of use. The collar system allows for repeatable parts, making it ideal for high-production environments.
- Specifications and Dimensions
- Length: 90 in.
- Width: 37 in.
- Height: 81 in.
- Net Weight: 3720 lbs
- Speed: 30 – 2000 rpm
- Spindle Bore: 2.0625″
- Threads Imperial Qty Speed: 40 / 2–56 T.P.I.
- Tailstock Quill Dia: 2.125″
- Compound Rest Width: 4.33″
- Compound Travel: 4.75″
- Main Motor: 7.5 hp
- Lead Screw Diameter: 1.25″
- Lead Screw Thread Pitch: 4 T.P.I.
- Max. Swing In Gap Length: 6.125″
- Max. Swing In Gap Dia: 23.42″
- Cutting Tool Max Section: .625″ x .625″
- Feed Rod: .708 dia.
- Power: 220V / 3-phase
- Key Features and Benefits
- 12 speeds from 30 to 2,000 rpm
- 7.5 hp motor for powerful performance
- Mitutoyo DRO for precise cuts
- Rigid cast iron base for stability
- Collar system for repeatable parts
- Halogen work light
- Emergency foot brake for safety
