Description

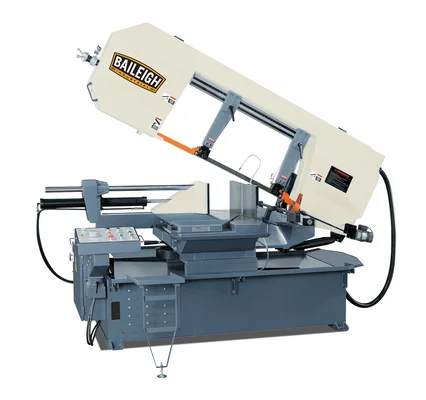

Baileigh 220V 3Phase SA Dual Mitering Metal Cutting Band Saw VS System (1001389) combines precision and efficiency for all your metal cutting needs. This dual-mitering band saw is designed to handle heavy-duty production with its hydraulic system, cast iron bow, and robust steel frame, ensuring accurate cuts and long-lasting performance.
The hydraulic band saw features an 18” round cutting capacity and a 15” x 24” rectangular cutting capacity at 90°, with a swivel head that miters up to 60° left and right. The 106 to 317 fpm variable blade speed allows for infinite adjustments to suit different materials.
- Specifications and Dimensions
- Length: 111 in.
- Width: 45 in.
- Height: 74 in.
- Net Weight: 3550 lbs
- Power Source: 220V / 3-phase
- Motor: 5 HP
- Cutting Capacity Round: 18.1″ at 90°
- Cutting Capacity Rectangle: 17″ x 24″ at 90°
- Variable Blade Speed: 106 to 317 fpm
- Miter Angle: 0 – 60° Left and Right
- Table Height: 31.5″
- Key Features and Benefits
- 18” round and 15” x 24” rectangular cutting capacity
- Swivel head miters up to 60° left and right
- Variable blade speed for different materials
- Hydraulic system with adjustable downfeed
- Sturdy cast iron vise and bow for accurate cuts
- Electro-welded steel frame for stability
- Flood coolant system for prolonged blade life
- 1-year parts warranty
- Lifetime technical support by phone
