Description

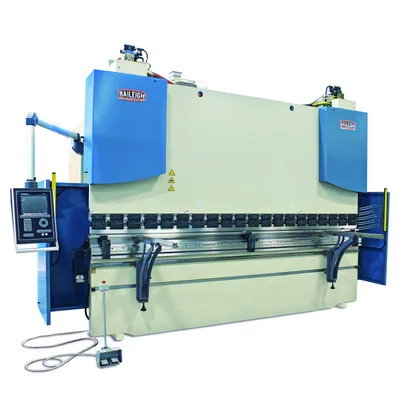

Baileigh 250 Ton 5 Axis Press Brake 13′ Wide with Delem DA-56T Control (1013119) is our most sophisticated hydraulic press brake machine, offering unmatched precision and power. This CNC press brake features a robust 13-foot length and a 250-ton capacity, making it ideal for heavy-duty bending tasks.
The Baileigh press brake runs on 480-volt 3-phase power, delivering consistent performance. The Vickers/Eaton® hydraulic pump and heavy-duty torque tube synchronization ensure reliable and synchronized bending operations. This machine minimizes deformation and maintains rigidity during the bending process.
- Specifications and Dimensions
- Length: 134 in.
- Width: 70 in.
- Height: 106 in.
- Net Weight: 35000 lbs
- Voltage: 480 V
- Maximum Pressure: 250 tons
- Throat Depth: 15.7 in.
- Stroke Distance: 11 in.
- Back Gauge Length: 31.5 in. (Motorized)
- Main Motor: 29.5 hp
- Distance Between Housings: 124 in.
- Distance From Table To Ram: 20.4 in.
- Key Features and Benefits
- 250-ton pressure capacity across 13-foot length
- 29.5 hp motor for powerful performance
- Delem DA-56T touchscreen controller for easy programming
- Vickers/Eaton® hydraulic pump for long-lasting reliability
- 2-speed bending system for efficiency and control
- Fully integrated steel construction for stability
- Includes multi-Vee bottom die and gooseneck punch
- Safety light curtains to prevent accidents
- 1-year parts warranty and lifetime technical support
