Description

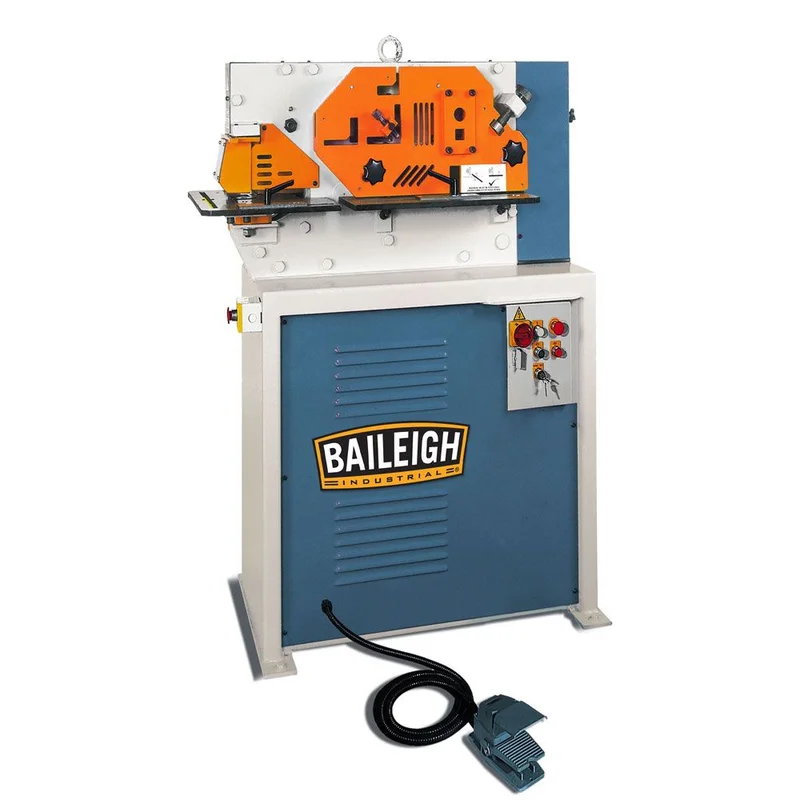

This pivot-style hydraulic ironworker combines a compact footprint with a budget-friendly price to meet the needs of small fabrication shops. The SW-441 includes just about every feature you’d want to help you shear and punch smoothly.
Baileigh SW-441 Ironworker Features:
- Runs on 220-volt single-phase power and will work at virtually any site in North America.
- Delivers 44 tons of force for punching and shearing.
- Stations for 4 main functions: flat-bar shearing, angle cutting, section cutting for multiple profiles, and punching.
- Runs at up to 23 cycles per minute, increasing the speed of your projects.
- Product hold-downs for all stations ensure clean, straight shearing.
- Large reference tables accommodate bigger pieces of material and easily pull out from the machine, so that you can get the punch closer to angle iron.
- Product guides make repeatability a cinch when you’re setting up production runs.
- Large-button control panel and foot pedal punch control are conveniently located.
- Offers adjustable stroke control, with upstrokes and downstrokes for the punching and shearing sections and a maximum stroke length of 1.125″.
- Accepts optional tooling available from Baileigh Industrial, such press brake attachments, to make this machine even more versatile.
- Includes .75” punch and die.
- Heavy welded steel plate construction maintains accuracy, minimizes flex, and makes the machine last longer.
Why choose the SW-441 over similar machines?
- This ironworker’s small footprint will fit into tight shop spaces and just about any job site.
- The SW-44 comes standard with features that you won’t find on most ironworkers in this price range, like a
- large table with product guides and a foot pedal.
- Quick-release punch and die system makes changeovers faster and more efficient.
- CE certifications vouch for the machine’s exacting quality and safety standards.
Baileigh SW-441 Specifications:
- Item Number: SW-441
- Motor Hp: 3
- Width x Thickness: 13.77″ x .25″
- Round Bar Shear: 1.125″
- Punch Capacity: .75″ x .625″
- Punching Pressure: 44 Tons
- Throat Depth: 6.88″
- Square Bar Shear: 1″ x 1″
- Bar Shearing Working Height: 44.88″
- Angle Shearing Working Height: 40″
- Angle Shearing at 90°: 3″ x 3″ x .25″
- Angle Flange Trim: 3.14″ x .393″
- Blade Length: 13.87″
- Max. Stroke Length: 1.125″
- Diameter x Thickness: 1.5″ x .375″
- Cycles / Min.: 23
- Flat Bar Shearing: 7.87″ x .5″
- Flat Shearing Working Height: 42.32″
- Power: 220V 1-Phase
- Shipping Weight: 1530lbs
- Shipping Dimensions (Inches): 60x48x71
