DESCRIPTION

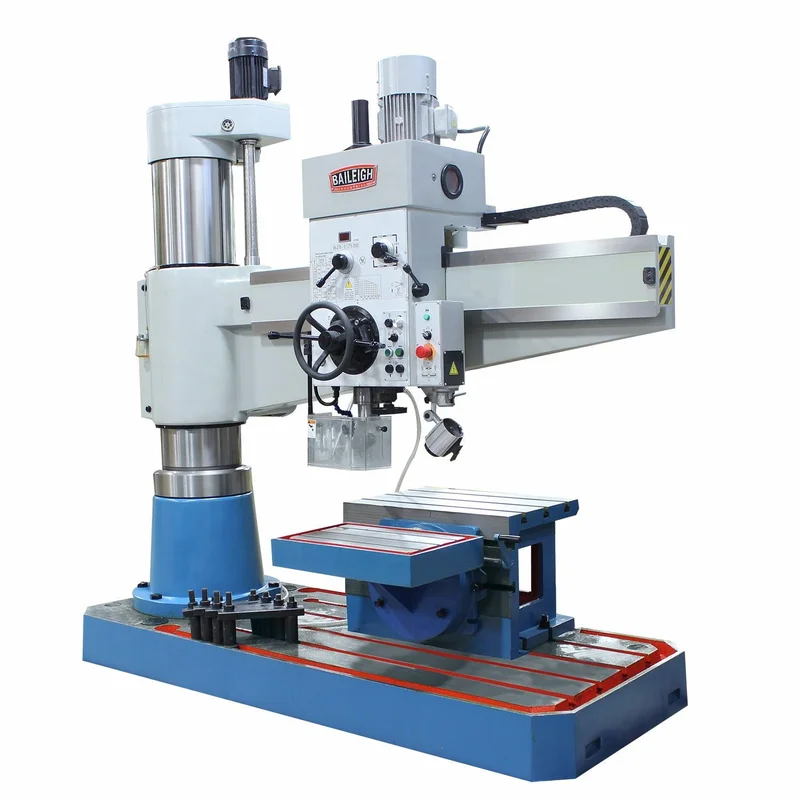

RD-1600H-VS Variable Speed Radial Drill is a step above other conventional radial drills. It is suitable for medium and small parts in drilling, spot facing, counter-boring and taping etc. It is really an idea machine suitable for single work piece machining and batch production in the machining workshop, maintenance workshop and tool production workshop.
- Inverter driven, variable speed
- 38 to 2000 rpm
- Heavy duty, oversized spindle
- Integrated coolant system with easy to reach switch
- Hydraulic clamping for column, arm and spindle box
- Power down feed
SPECIFICATIONS
| tem Number | RD-1600H-VS |
|---|---|
| Max. Drill Capacity | 2-1/2″ (No.45 steel) & 2-7/8″ (HT200 cast iron) |
| Max. Tapping Capacity | 1-3/4″ (No.45 steel) & 2″ (HT200 cast iron) |
| Distance from Spindle to Column Center | 13-3/4″ to 63″ |
| Diameter of Column | 13.7″ |
| Spindle Taper | MT5 |
| Spindle Travel | 12-3/8″ |
| Spindle Speed Range | 38 to 2000 rpm (variable) |
| Range of Spindle Feeds | .0024″ to .0394″ in/rev |
| Spindle Feeds | Inverter Driven |
| Distance Between Spindle Nose and Base | 13-3/4″ to 49-1/4″ |
| Table Size | 24.8″ x 19.6″ x 19.6″ |
| Base Size | 94.4″ x 39.3″ x 7.8 |
| Overall Size | 98” x 40”~96” x 103”~112” A counting for Beam Movements |
| Travel Speed | 47.2 in/min. (arm movement) |
| Motor | 5.25 hp |
| Power | 220V 3-phase |
| Shipping Weight | 8500lbs |
| Shipping Dimensions (Inches) | 102.375 |
* specifications subject to change without notice.
