Description

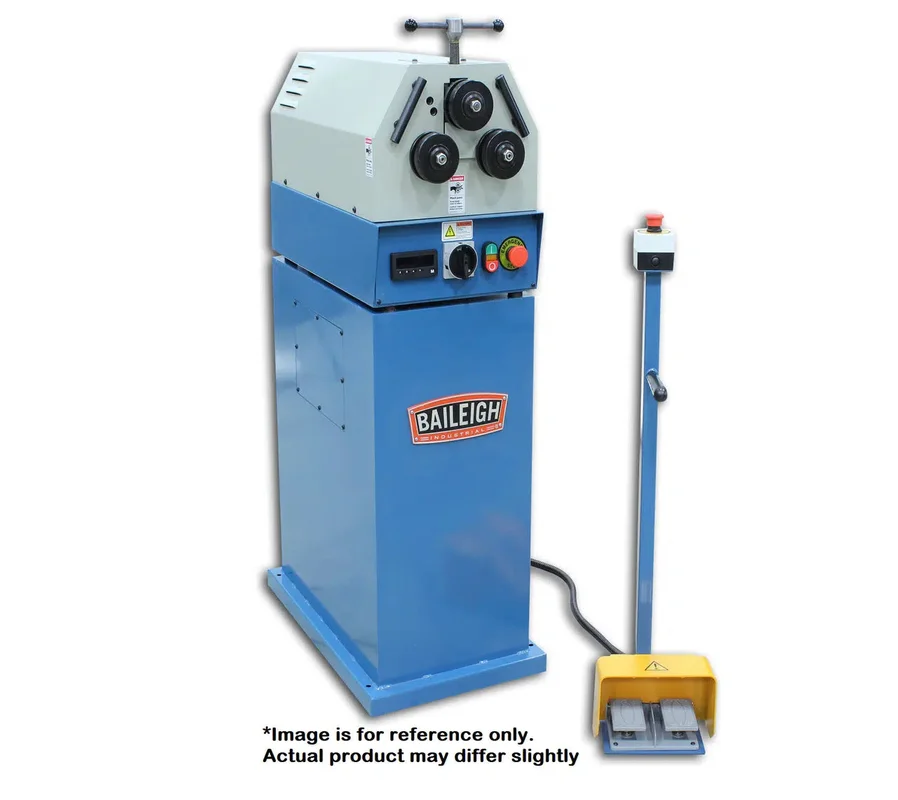

We designed the R-M20 ring roller with tight, compact roll formation to shape small diameter material and roll coils without trouble.
Features:
- Runs on 220-volt 3-phase power.
- Maximum capacity of .5″ schedule 40 pipe and 1″ round tube.
- Adjustable lateral guides let you bend to just about any coil width imaginable.
- Convenient foot pedals control forward and reverse roll direction.
- Easy-to-read digital display shows top roll position, making bend repeatability a cinch.
- Emergency stop protects your safety, as well as the machine.
- Rugged steel frame plus hardened, ground, and polished steel shafts ensure accuracy and years of productivity.
- Machine head separates from included stand to make the machine portable and easy to store—an advantage for working in small shops or traveling to work on-site.
Specifications:
| Item Number | R-M20-220 |
| Driven Rolls | 2 |
| Roll Adjustment | Manual |
| Pipe Capacity | Size: .5” (sch.40) / Min. Dia.: 14” |
| Round Tube Capacity | Size: 1″ (.0625″) Min. Dia.: 16″ |
| Square Tube Capacity | .75″ (.0625″) Min. Dia.: 12″ |
| Solid Round Capacity | Size: .5″ Min. Dia.: 5″ |
| Flat Bar Easy Way | Size: 1.75″ Min. Dia.: 12″ |
| Flat Bar Hard Way | Size: 1″ Min. Dia.: 8″ |
| Angle Iron Capacity | Size: .75″ (.125″) Min. Dia.: 10″ |
| Shaft Diameter | .78″ |
| Shaft Center Distance Lower Rolls | 10.88″ |
| Upper Roll Dia. | 3.38″ |
| Lower Roll Dia. | 3.38” |
| Pinch | Single |
| Power | 220V – 3-Phase |
| Shipping Weight | 420lbs |
| Material Type | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel. |
| *Optional Tooling | Some applications may require optional tooling. |
| Speeds | 14285 |
| Shipping Dimensions (Inches) | 60x44x59 |
