Baileigh Industrial 1010425

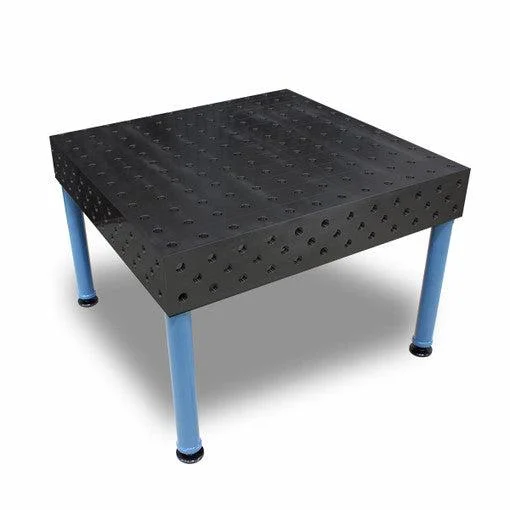

The WJT-4747-HD has a table size of 47″ x 47″ and has a total of 5 mourning surfaces that use Industry standard 28mm holes that are spaced at 100mm to ensure the most options with the strongest holding power. Made from 250 cast iron, the WJT-4747-HD welding jig table from Baileigh Industrial is made to withstand the rigors of any shop. All of Baileigh Industrial’s welding tables are made to exact tolerances and maintain flatness of +/- .0025″ and have a hardness rating of 140 to 160 Brinell.
Baileigh Industrial 1010425 Includes
- (1) Welding Table
Baileigh Industrial 1010425 Features
- 47” x 47” table
- Made from 250 Cast Iron
- Brinell Hardness 140~160
- 5 Mounting Surfaces
- Expandable
- 2 ton weight capacity
- Industry Standard 28mm Mounting holes
- 100mm hole spacing
- Etched Position Marks
Baileigh Industrial 1010425 Specifications
| Working Table Size | 47″ x 47″ |
| Table Load Capacity | 2 Tons |
| Table Height | 33.5″ |
| Table Flatness | +/- .0025″ |
| Number of Mounting Surfaces | 5 |
| Mounting Hole Size | 28 mm |
| Mounting Hole Spacing | 100 mm |
| Dimensions (L x W x H) | 50″ x 50″ x 50″ |
