Description
Product Overview

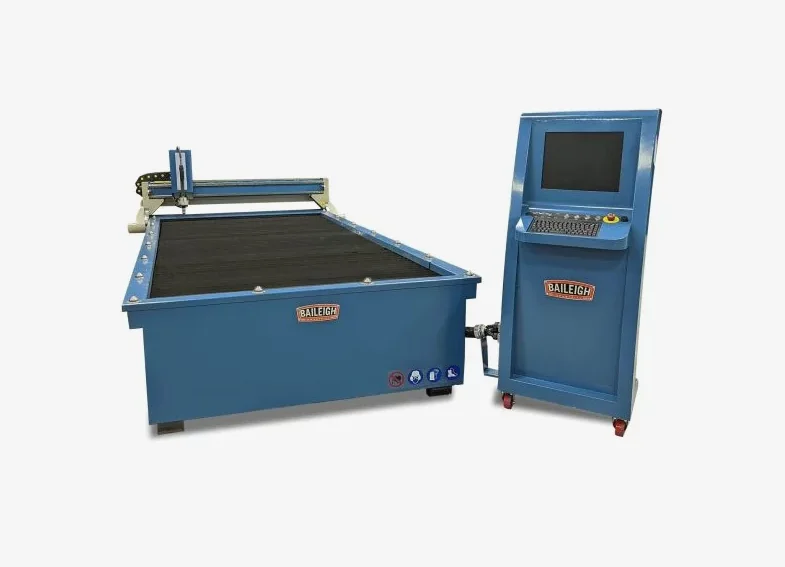

Our PT-105HD-W includes a water bath and has the structural strength to handle 5’ x 10’ sheets. Automatic height detection is ideal for production runs. It arrives nearly fully assembled and comes with software.
FEATURES
- Runs on 220-volt single-phase power.
- Includes integrated water bath for cooler cutting and less airborne mess.
- Control the X, Y, and Z axis movement from the sturdy podium with large console screen and keypad.
- Includes easy-to-learn design software that you can load into any basic PC (more details below).
- Console offers a pre-loaded library of shapes that you can resize and alter at the table—without a computer.
- Automatic height detection on the Z-axis makes perfect cuts in corrugated or uneven materials.
- Panasonic® brushless servo motors, controlled by Panasonic® servo motion controllers, drive the gantry.
- Industrial-grade gantry travel system for the X, Y & Z axis made from extremely rigid structural steel.
- Gantry can move out of the way for a full 10-foot sheet during loading, minimizing the chance of machine damage.
- High gantry (one of the highest in the industry) lets you clearly see its movement for better adjustment and control.
