Description

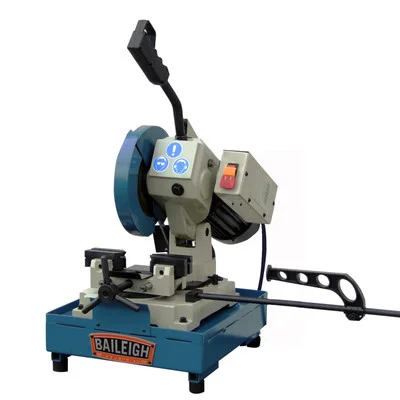

Baileigh Manually Operated 8-1/2″ Portable Cold Saw (1013715) is designed to deliver burr-free cuts, ideal for hobbyists and small fabrication shops. This compact and portable cold saw offers precision and efficiency for a variety of cutting applications.
The Baileigh manual cold saw accepts a 9” blade and is our smallest model, making it perfect for tight spaces. The saw miters up to 45° to the left and features a 1 hp motor that runs on 110 volts. The flood coolant system ensures high cut quality and extends the lifespan of both the saw and its blades.
- Specifications and Dimensions
- Length: 28 in.
- Width: 20 in.
- Height: 25 in.
- Net Weight: 200 lbs
- Max. Blade Diameter: 9″
- Operation: Manual
- Head Miter: 45°
- Round Solid at 45°: 1.5″
- Square Tube at 45°: 2″ x 2″
- Round Tube at 45°: 2.125″
- Round Solid at 90°: 1.75″
- Square Tube at 90°: 2.25″ x 2.25″
- Round Tube at 90°: 2.5″
- Coolant System: Yes
- Vice Style: Dual Action, Self Centering
- Max. Vice Opening: 2.75″
- Head Style: Pivot
- Arbor Size: 1.26″
- Motor: 1 hp
- Blade Speed: 50 rpm
- Power: 110V
- Shipping Weight: 187 lbs
- Shipping Dimensions: 28″ x 20″ x 25″
- Key Features and Benefits
- Burr-free cuts for high precision
- Portable and compact design
- Miters up to 45° to the left
- Flood coolant system for high cut quality
- Self-centering American-style vise for secure material positioning
- Heavy-duty cast iron base for stability
- 1-year parts warranty and lifetime technical support
