Description

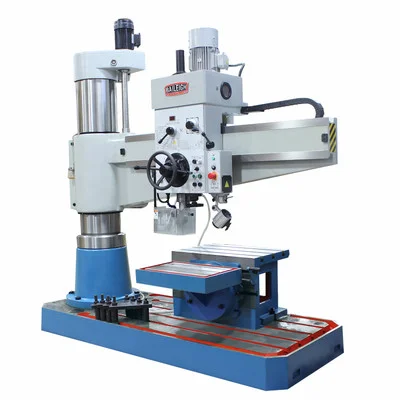

Baleigh Hydraulic Variable Speed Radial Drill 220V 3Phase MT5 Spindle (1019843) is a step above other conventional radial drills. Designed for medium and small parts in drilling, spot facing, counter-boring, and tapping, it features an inverter driven variable speed motor that ranges from 38 to 2000 rpm.
With a distance of 63″ from the spindle to the column at maximum and 13-3/4″ at minimum, this 1019843 MT5 spindle drill accommodates a wide range of workpiece sizes. The integrated coolant system with an easy-to-reach switch enhances usability.
- Specifications and Dimensions
- Length: 103 in.
- Width: 46 in.
- Height: 103 in.
- Net Weight: 8500 lbs
- Distance Spindle to Column (Max.): 63″
- Distance Spindle to Column (Min.): 13-3/4″
- Motor: 5.25 hp
- Number of Spindle Speeds: 38 to 2000 rpm (variable)
- Spindle Taper: MT5
- Tapping Capacity Mild Steel: 1-3/4″ (No.45 steel) & 2″ (HT200 cast iron)
- Input Power: 220V 3-phase
- Range of Spindle Speeds: .0024″ to .0394″ in/rev
- Shipping Dimensions: 102.375″ x 46″ x 103″
- Key Features and Benefits
- Inverter driven, variable speed motor
- Heavy duty, oversized spindle
- Hydraulic clamping for column, arm, and spindle box
- Integrated coolant system with easy to reach switch
- Power down feed for efficiency
- Ideal for medium and small parts in drilling, spot facing, counter-boring, and tapping
- 1-year parts warranty
- Lifetime technical support
