Description
5175313 D2-10A 10K Capacity 2-Post / Asymmetric Clearfloor / Incl. Stack Pads & Adapters

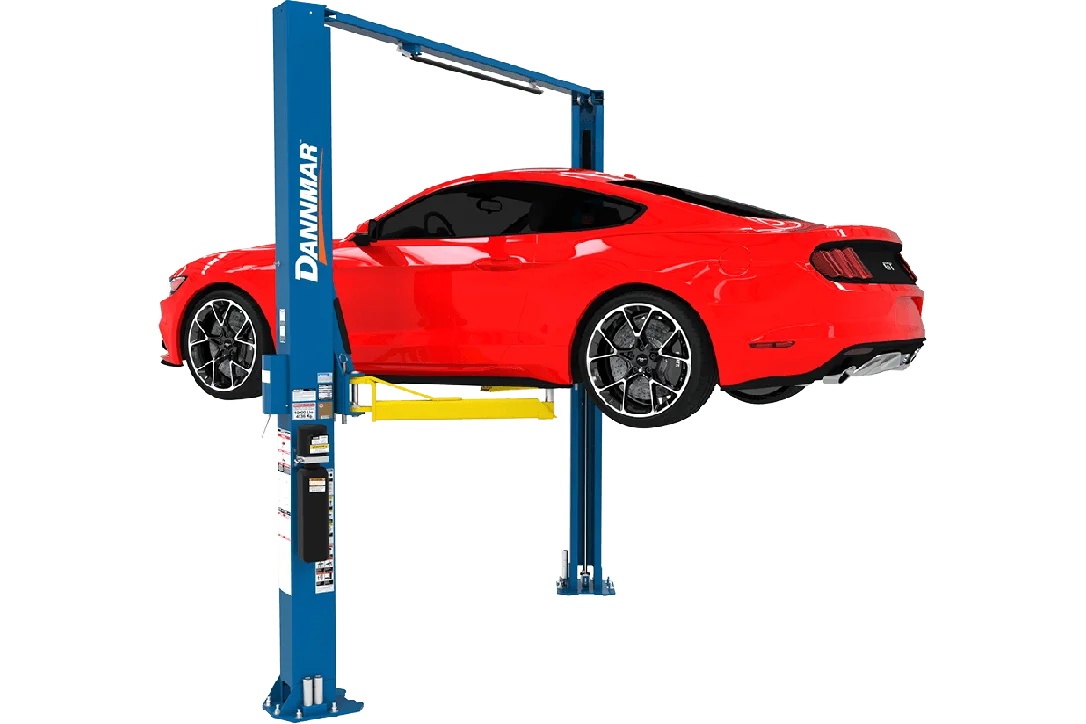

D2-10A ASYMMETRIC TWO-POST LIFT
The D2-10A is an asymmetric clearfloor two-post lift that features a 10,000 lb. lifting capacity and accommodates full-size trucks, vans, and standard passenger cars. Single-piece column construction, tubular steel lifting carriage, and direct-drive hydraulic cylinders ensure the best possible performance and reliability. Rotated asymmetric columns allow vehicles to be loaded with doors clear of the columns for convenient entry and exit of vehicles.
Features
- Telescoping screw pads offer increased versatility
- Added overhead safety shutoff bar
- Tru-Metric™ arm design for versatile arm positions
- 30° rotated single-piece columns
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual hydraulic direct-drive cylinders
- Oversized 53″ tall carriage for superior strength
- Electric/hydraulic power system
- Automatic arm restraints
- Heavy-duty 1/2” aircraft-quality equalizer cables
- Oversized cable sheave reduces cable fatigue
- 4-piece 63 mm stackable adapter set included
- Versatile drop-in contact pads with stackable adapter pins
| Style | Asymmetric |
| SKU# | 5175313 |
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| A – Lowered Height + Pad | 5″ (127 mm) |
| B – Max. Lift Height (Top Lock) | 78.5″ (1,994 mm) |
| C – Max. Rise | 69″ (1,753 mm) |
| D – Height Overall | 145″ (3,683 mm) |
| E – Width Overall | 143.5″ (3,645 mm) |
| F – Width Outside Columns | 137.25″ (3,486 mm) |
| G – Width Inside Columns | 120.75″ (3,067 mm) |
| H – Drive-Thru Clearance | 100″ (2,540 mm) |
| I – Floor to Top Switch | 141″ (3,581 mm) |
| J – Front Arm Reach | 29.25″ (743 mm) – 43.75” (1,111 mm) |
| K – Rear Arm Reach | 40.25″ (1,022 mm) – 58” (1,473 mm) |
| Max. Load per Arm | 2,500 lbs. (1,134 kg) |
| Time to Full Rise | 45 seconds |
| Noise | 45 dB |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Shipping Weight | 1,682 lbs. (763 kgs) |
| Shipping Dimensions | 151″ x 23″ x 35″ (4,495 mm x 597 mm x 889 mm) |
