Description

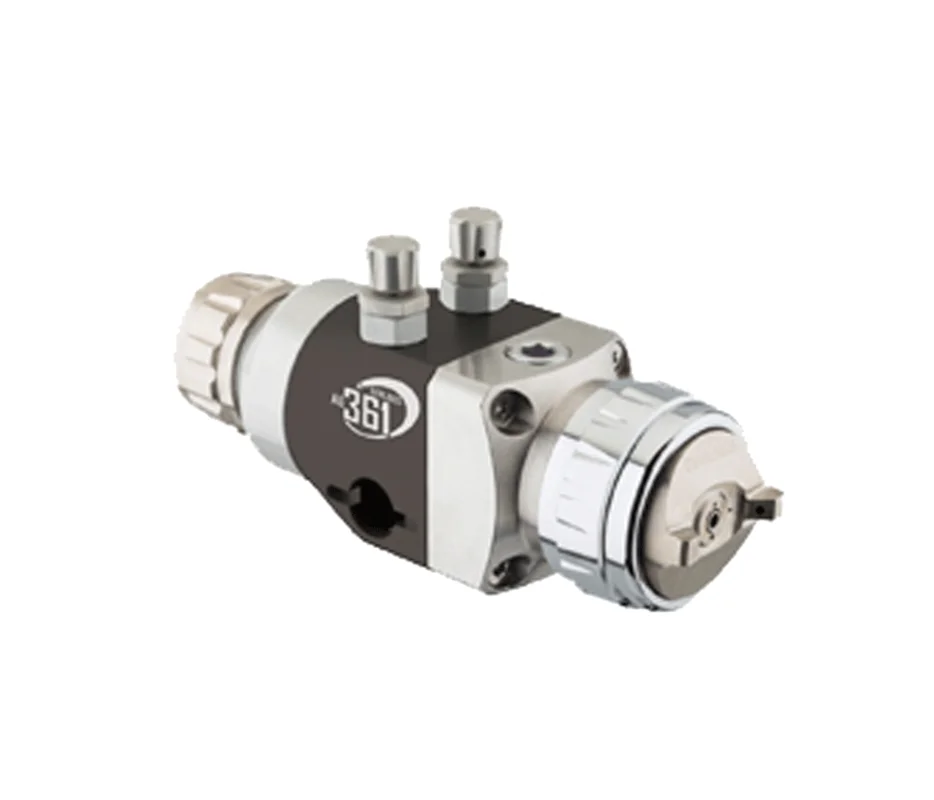

Devilbiss AGG-510 obsolete, replaced by AG361-C3-14 (Conventional C3 Air Cap, 1.4mm Tip)
Features
- Low Pressure Air Atomizing Spray gun for fine finishing and General Industrial applications.
- AG-361 series shares common Air Caps and fluid tips with the market leading DeVilbiss PRO Lite hand gun. This means the AG-361 range offer consistent application parameters between Automatic and Hand spray stations in the same facility
- Modular, easy to maintain gun construction
- High Grade Stainless Steel gun head and fluid passageways for use with all coating types
- Air Caps available in HVLP, Trans Tech/High Efficiency and CONVentional Air Atomization versions
- Total control of application parameters by means of independent Atomizing and Spray Pattern air plus an 18 ‘click’ per revolution fluid needle control knob.
Includes
- 6mm atomization air fitting
- 8mm atomization air fitting
- 3/8ths NPS material fitting
|
Max Air Input Pressure (P1) |
101.5 psi |
|
Max Fluid Input Pressure (P2) |
101.5 psi |
|
Air Inlet Size |
1/4 G |
|
Fluid Inlet Size |
1/8 G |
|
Fluid Inlet Thread Gender |
Female |
|
Gun Type |
Automatic |
|
Manifold Type |
Rear Ports |
|
Atomization Type |
Conventional |
|
Max Operating Ambient Temperature |
104 |
|
Gun Head & Fluid Passageways |
Stainless Steel |
|
Gun Body Material |
QuickClean™ coated Aluminium |
|
Manifold Material |
Stainless Steel |
|
Fluid Nozzle & Needle Materials |
303 Stainless Steel, Nitride coated Stainless Steel, Tungsten carbide |
|
Seals & O rings |
HDPE, FEPM, PTFE, FFKM |
