Description

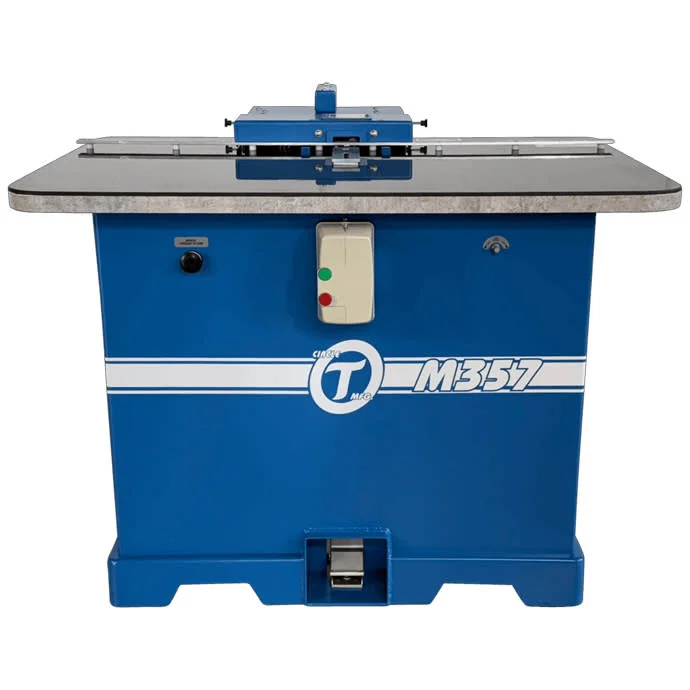

The Easy Drawer Notcher Model M357 is a specialized woodworking machine designed for high-speed, precision notching and drilling of drawer boxes. Built with safety and efficiency in mind, this robust machine features a durable phenolic work surface, intuitive foot pedal operation, and integrated safety systems that ensure consistent results with every cycle. Perfect for cabinet shops and manufacturers requiring fast, repeatable drawer box preparation.
Key Features & Benefits
Easy Operation & Fast Production
- EASY Foot Pedal Cycle Start for hands-free operation.
- EASY Notch and Drill Simultaneously for efficient workflow.
- EASY Center Fence Drawer Box Alignment ensures accurate positioning every time.
- FAST Operation completes each drawer box in just 10 seconds.
Durable Construction
- HIGH WEAR RESISTANT Phenolic Top provides long-lasting durability and smooth operation.
- INSERT Cutters for easy replacement and maintenance.
Comprehensive Safety Features
- SAFETY Drawer Clamps ensure drawer box does not move during cycle.
- SAFETY Switches ensure machine cannot cycle without a drawer present.
- SAFETY Retraction of cutter and drill between cycles protects operators.
Application Specifications
- Min Thickness of Drawer Box Back: 5/16″
- Max Thickness of Drawer Box Back: 3/4″
- Min Width Inside of Drawer Box: 5 1/8″
- Min Length Inside of Drawer Box: 8 1/4″
- Standard Notch Size: 57mm (35mm and 51mm cutterheads also available for purchase)
- Standard Locating Hole Size: 15/64″
Drive Package Specifications
- Main Motor: 1.5 HP
- Pneumatic Drill Included
- 8″ Insert Cutter
- Arbor Speed: 3,200 RPM
- Available in 120V and 220V Single Phase, 230V and 460V 3-Phase, Hydraulic, and Pneumatic Drive Packages
Utility Requirements
- Dust Collection Requirements: 670 CFM, 4″ Outlet
- Electrical Version Pneumatic Requirement: 100 PSI, 6 CFM
- Pneumatic Version Requirement: 100 PSI, 76 CFM
Dimension Specifications
- Overall Table Size: 31.5″ x 47.5″
- Table Operating Area: 21.75″ x 47.5″
- Footprint: 52″ W x 42″ D x 42″ H
Available Options
- Extra Cutterhead (35mm Fully Tooled)
- Extra Cutterhead (51mm Fully Tooled)
- Hydraulic Package Adder (Not Electric)
