Description

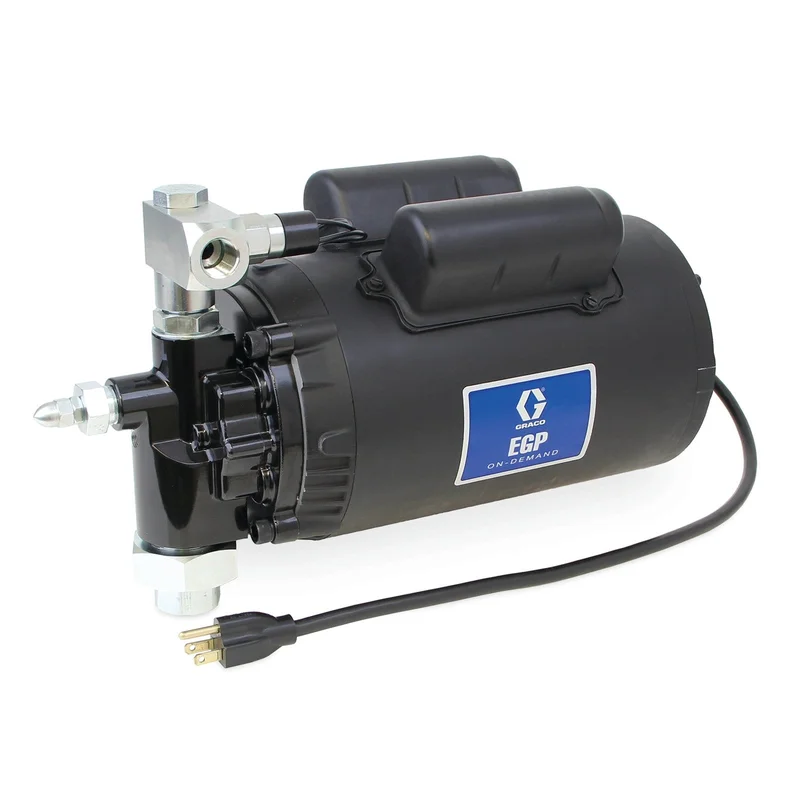

Choose cost-saving convenience with the all-new Graco EGP electric pumps. Install the EGP on-demand pump to replace traditional pneumatic pumps and reduce operating costs. These pumps offer the same powerful, high-quality performance you’ve come to expect from Graco — only for less operating cost and more convenience.
Install the EGP On-Demand Pump in a variety of applications including workshops, mobile trucks and industrial plants. Use it as an energy-efficient option to standard pneumatic pumps.
- Electrical Flexibility – Available in 12 VDC and 115 VAC power options.
- Smooth Fluid Flow 4 gpm (15 lpm) – Output flow is continuous and non-pulsating up to 4 gpm (15 lpm).
- Heavy-Duty Motor with Long Life – Industrial-grade electric motors with over-temperature protection on 115 VAC models.
- Fluid Flow When Needed – On-demand pressure sensing technology starts and stops the pump during the dispense.
- Pump Reliability – Internal inlet and outlet checks keep pump section flooded to maintain prime for reliable performance.
- Simultaneous Dispenses – Pump long distances and supply fluid to multiple dispense points.
UPC Product: 00769946183672 Family Code: FAMELO Unit of Measure: EA Height: 12 IN |30.48 CM Length: 12.5 IN |31.75 CM Width: 20.5 IN |52.07 CM Volume: 1.778 FT3 |.05 M3 Chargeable Weight: 51 LBS | 23.13 KG
Technical Specifications
| Maximum Speed (RPM) | 1750 |
|---|---|
| Maximum Working Pressure (bar) | 34.5 |
| Maximum Working Pressure (psi) | 500 |
| Overall Depth (in) | 12.5 |
| Overall Depth (mm) | 317.5 |
| Overall Height (in) | 8 |
| Overall Height (mm) | 203.2 |
| Overall Width (in) | 6.75 |
| Overall Width (mm) | 171.4 |
| Power Rating (HP) | 1.5 |
| Weight (lb) | 36 |
| Wetted Parts | Zinc-Plated Carbon Steel, Stainless Steel, Galvanized Steel, Aluminum, Nitrile Rubber |
| Compatible Material | Oil |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 4 |
| Outlet Thread Type | NPT |
| Voltage (V ac) | 115 |
| Fluid Pressure Control Type | Internal Bypass, Electrical Pressure Shut Off Switch |
| Inlet Thread Size (in) | 0.75 |
| Maximum Current (A) | 14.4 |
| Outlet Thread Size (in) | 0.5 |
| Type | Gear Pump |
| Power Type | Electric |
| Inlet Thread Gender | Female |
| Outlet Thread Gender | Female |
| Maximum Flow Rate (L/min) | 15.1 |
| Model | EGP |
