Description

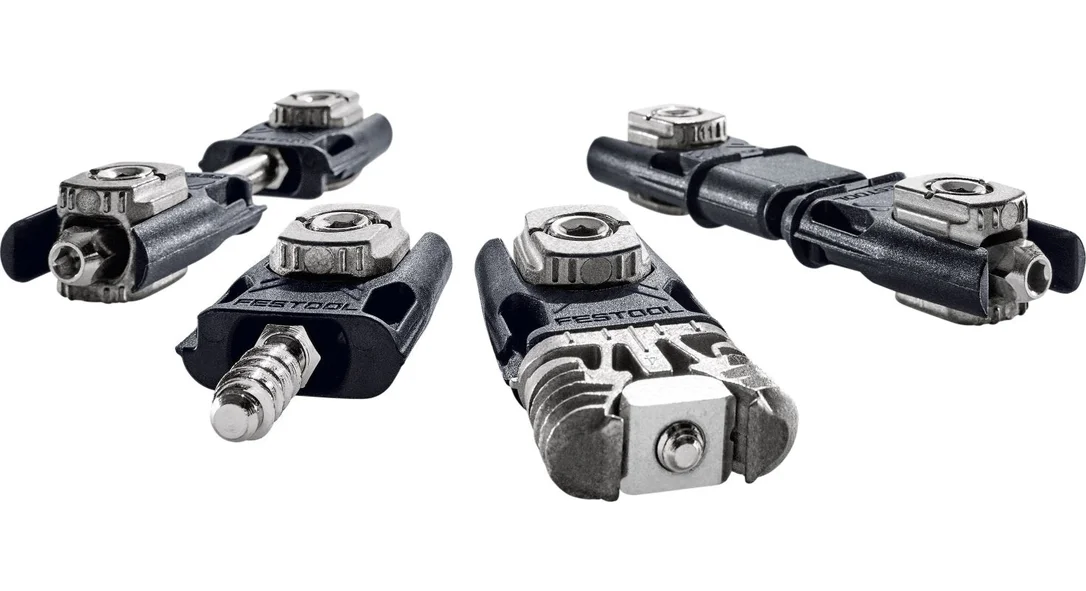

Festool’s DOMINO 8mm Connector System allows you to make quick, sturdy, knock-down joints with your DOMINO DF 500. These aren’t ordinary knockdown (KD) furniture joints. DOMINO connector joints are easier to make AND more robust than standard KD joints. It excels at making cabinets using sheet goods.
Then, you can disassemble and re-assemble them later.
Each joint is milled 100% with the DOMINO DF 500 using a 8mm cutter(not included). If you’re using the indexing pins on the DF 500, you don’t even need a ruler.
Each component of the system isdescribed below.
Ifyou’re just starting out with the Festool 8mm Domino Connector System, you may want to get theFestool 8mm DOMINO Connector Set Systainer KV-SYS D8. It has a complete collection of Connector fittings organized in a Systainer — everything you need to start except the Domino machine and the 8mm cutter.
| Component | HW # | Festool # | |
|---|---|---|---|
| Corner Connection KV D8 Pack of 50 |
The KV-D8 Corner Connector is used to make a 90° corner joint when not using the LR32 hole system. This connector requires the Drilling Template&Drill bit. |
723120 | 203166 |
| Corner Connection KV-LR32 Pack of 50 |
The KV-LR32 Corner Connector is used to make a 90° corner joint when using the LR32 hole system. | 723121 | 203168 |
| Center Panel Connector MSV D8 Pack of 25 |
The MSV D8 Center Panel Connector is used to make a 90° mid-panel joint when not using the LR32 hole system. This connector requires theDrilling Template&Drill bit. |
723122 | 203167 |
| Center Panel Connector MSV-LR32 Pack of 25 |
The MSV D8 Center Panel Connector is used to make a 90° mid-panel joint when using the LR32 hole system. | 723123 | 203169 |
| 8mm x 36mm Beech Tenon D 8×36/130 BU Pack of 130 |
Used for additional support in mid-panel when already using two Connectors. The special 36mm length fits the mortise used for connectors without resetting the depth of cut. |
723128 | 203175 |
| Connector Cap Silver Pack of 50 |
Adhesive cover for the drill access hole used with KV D8 & MSV D8 connectors. |
723125 | 203172 |
| Connector Cap White Pack of 50 |
Adhesive cover for the drill access hole used with KV D8 & MSV D8 connectors. |
723126 | 203173 |
| Connector Cap Grey Pack of 50 |
Adhesive cover for the drill access hole used with KV D8 & MSV D8 connectors. |
723127 | 203174 |
