FiTech 1000 HP In Tank Fuel Pump Module (50016)

Description

The FiTech 1000 HP In Tank Fuel Pump Module (50016) simplifies EFI conversions with its universal design and high-performance capabilities. This kit provides a reliable in-tank fuel pump solution, offering quiet operation and reduced fuel starvation risk. Engineered for tanks 6 to 15 inches deep, it supports up to 1000 horsepower engines with its 440 LPH flow rate.

KEY FEATURES AND BENEFITS:

• High Flow Rate: 440 LPH supports high-performance EFI systems, up to 1000 HP.
• Universal Fit: Adjustable design fits tanks from 6 to 15 inches deep, suitable for various vehicle applications.
• In-Tank Design: Provides quieter operation and minimizes fuel starvation.

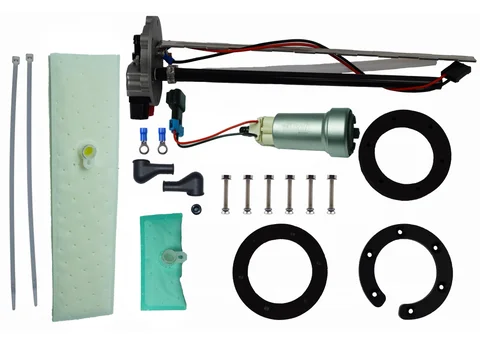

• Complete Kit: Includes two filter sock sizes, gaskets, and mounting hardware for easy installation.
• Secure Connections: Features -6 AN O-ring boss fittings for leak-free fuel line connections.

SPECIFICATIONS:

• Fuel Pump Type: Electric In-Tank
• Flow Rate: 440 LPH / 116 GPH
• Fuel Pressure: 100 PSI
• Voltage: 12V
• Inlet/Outlet: Push-on inlet, 3/8 inch hose barb outlet.
• Tank Depth Compatibility: 6 to 15 inches
• Compatibility: Designed for pre-pollution controlled vehicles and Tanks Inc. fuel tanks.
• Weight: 4 lbs.
• Dimensions: 17 × 9.5 × 6.5 inches.

HOW TO USE:

• Measure your fuel tank depth to ensure compatibility (6-15 inches).
• Prepare the fuel tank by cleaning and ensuring it is free of debris.
• Adjust the pump module bracket to the appropriate depth for your tank.
• Install the chosen filter sock onto the pump.
• Mount the pump module inside the fuel tank, securing it with the provided hardware.
• Connect the fuel lines to the -6 AN O-ring boss fittings.
• Connect the vent line.
• Wire the pump to a 12V power source.
• Test the system for leaks and proper operation, ensuring all connections are secure.

BENEFITS OF USING THE FITECH 1000 HP IN TANK FUEL PUMP MODULE (50016):

• Improved Fuel Delivery: Consistent fuel flow for optimal engine performance.
• Reduced Noise: In-tank design minimizes pump noise.
• Simplified EFI Conversion: Universal design and complete kit ease installation.
• Enhanced Reliability: Reduces the risk of fuel starvation.
• Flexibility: Ability to use two different filter sock sizes allows for adaptation to varying fuel tank debris conditions.

FEATURES:

• Billet Aluminum Construction: Durable and lightweight design.
• Parallel Supply and Return Ports: Enhances fuel flow efficiency.
• Separate Vent Port: Supports proper fuel tank ventilation.
• Cut-to-Fit Mounting Bracket: Allows for customized installation.
• Two Filter Sock Sizes Included: Adaptable to different fuel conditions.
• -6 AN O-Ring Boss Fittings: Ensures secure connections.
• Mounting Hardware Included: All necessary components for installation.
• Designed for Pre-Pollution Controlled Vehicles: Compatible with classic vehicle applications.
