FiTech 1964-1967 Buick Skylark 440 LPH EFI Fuel Tank Kit (58139)

Description

The FiTech 1964-1967 Buick Skylark 440 LPH EFI Fuel Tank Kit (58139) provides a comprehensive solution for upgrading the fuel system in 1964-67 Buick Special and Skylark models. This kit is designed to facilitate a smooth transition to electronic fuel injection (EFI) by offering a direct-fit, high-performance fuel tank system. It includes all necessary components to support high-horsepower applications, ensuring reliable fuel delivery and improved performance.

KEY FEATURES AND BENEFITS:

• Coated Steel Gas Tank: Features internal baffles to prevent fuel sloshing and ensure consistent fuel delivery.
• Integrated FiTech Go Fuel Module: Houses a powerful 440 LPH fuel pump, capable of supporting up to 1000 horsepower.
• Complete Kit: Includes a fuel sending unit, tank straps, and -6 AN inlet/outlet ports for secure, leak-free connections.
• Recessed Design: The sending unit and pump mount provide added clearance, simplifying installation.

SPECIFICATIONS:

• Vehicle Compatibility: 1964-67 Buick Special, 1964-67 Buick Skylark
• Tank Material: Coated Steel
• Fuel Pump Flow Rate: 440 LPH
• Horsepower Rating: Up to 1000 HP
• Inlet/Outlet Ports: -6 AN
• Weight: 40 lbs
• Dimensions: 28 × 13 × 47 inches

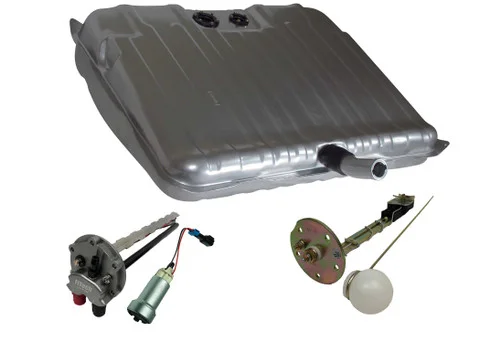

• Included Components: Gas tank, fuel sending unit, tank straps, in-tank pump module, 440 LPH fuel pump

HOW TO USE:

• Remove Existing Fuel Tank: Safely drain and remove the original fuel tank from the vehicle.
• Install New Tank Straps: Secure the provided tank straps to the vehicle’s frame.
• Position the New Tank: Carefully position the new FiTech Go EFI fuel tank into place.
• Connect Fuel Lines: Attach the -6 AN fuel lines to the inlet and outlet ports, ensuring a tight and secure connection.
• Connect Sending Unit Wiring: Connect the wiring harness from the sending unit to the vehicle’s electrical system.
• Install In-Tank Module: The fuel pump module is already installed; verify secure fit.
• Secure Tank: Tighten the tank straps to secure the tank in place.
• Test System: Fill the tank with fuel and test the fuel system for leaks and proper operation.

BENEFITS OF USING THE FITECH 1964-1967 BUICK SKYLARK 440 LPH EFI FUEL TANK KIT (58139):

• Complete EFI Conversion Solution: Provides a direct-fit solution for easy upgrades.
• Consistent Fuel Delivery: Internal baffles ensure stable fuel flow during operation.
• High-Horsepower Support: Equipped with a 440 LPH pump for performance applications.
• Leak-Free Connections: -6 AN ports enhance security and reliability.
• Simplified Installation: Recessed design for sender and pump improves ease of setup.
• Reliable Fuel Supply: Ensures optimal performance for modern fuel injection systems.

FEATURES:

• Integrated Internal Baffles: Stabilize fuel flow and prevent sloshing.
• Pre-Installed Fuel Pump: 440 LPH for high-performance needs.
• -6 AN Fitting Ports: Ensure proper fuel connections.
• Corrosion Resistance: Coated steel construction for durability.
• Complete Hardware Package: Includes all required components for installation.
• Direct Fit Design: Specifically engineered for the specified Buick models.
