FiTech 1964-68 Ford Mustang 340LPH EFI Fuel Tank Kit (58006)

Description

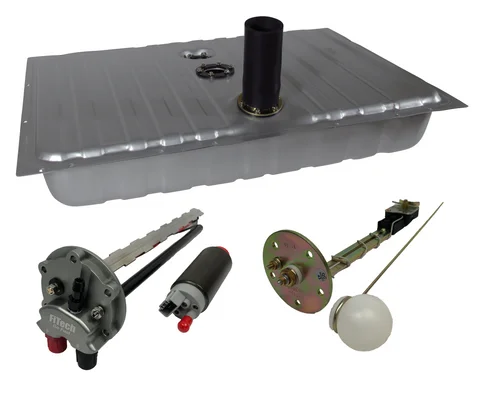

The FiTech 1964-68 Ford Mustang 340LPH EFI Fuel Tank Kit (58006) is designed to streamline the process of converting your 1964-1968 Ford Mustang to electronic fuel injection (EFI). This comprehensive kit provides a complete fuel delivery solution, ensuring reliable performance and compatibility with your classic vehicle. It includes a 16-gallon steel fuel tank, a high-capacity 340 LPH in-tank fuel pump, and a 73-10 ohm sending unit for factory gauge compatibility.

KEY FEATURES AND BENEFITS:

• Direct Fit Design: Specifically designed for 1964-1968 Ford Mustangs, making EFI conversion easier.
• High-Performance Fuel Pump: The included 340 LPH in-tank fuel pump supports up to 800 horsepower, ensuring adequate fuel delivery for high-performance applications.
• Baffled Fuel Tank: The 16-gallon steel tank features internal baffles to prevent fuel sloshing, maintaining consistent fuel flow.
• Factory Gauge Compatibility: The 73-10 ohm sending unit allows you to retain your original factory gauges.
• Secure Connections: The -6 AN inlet and outlet ports provide secure, leak-free fuel line connections.
• Increased Clearance: The recessed sending unit and pump mount provide added clearance for installation.

SPECIFICATIONS:

• Vehicle Compatibility: 1964-1968 Ford Mustang
• Fuel Tank Capacity: 16 gallons
• Fuel Pump Flow Rate: 340 LPH (90 gph)
• Fuel Pump Support: Up to 800 HP
• Sending Unit: 73-10 ohm
• Inlet/Outlet Ports: -6 AN male O-ring
• Fuel Tank Material: Steel, powder-coated silver
• Weight: 37 lbs
• Dimensions: 28 × 11 × 47 inches

HOW TO USE:

• Drain the existing fuel tank and remove it from the vehicle.
• Install the FiTech 58006 fuel tank using the provided mounting straps.
• Connect the included 73-10 ohm sending unit to the factory gauge wiring.
• Mount the FiTech Go Fuel 340 LPH pump module into the tank’s recessed mount.
• Attach -6 AN fuel lines to the inlet and outlet ports.
• Connect the fuel pump wiring to the vehicle’s electrical system.
• Install the filler neck as needed.
• Refill the tank with fuel and test the system for leaks and proper operation.

BENEFITS OF USING FiTech 1964-68 FORD MUSTANG 340LPH EFI FUEL TANK KIT (58006):

• Simplifies the process of upgrading to EFI, providing a reliable and efficient fuel delivery system.
• The in-tank pump design reduces the risk of fuel starvation.
• The high-capacity pump supports high-performance applications.
• The direct-fit design and included sending unit make installation straightforward and ensure compatibility with factory gauges.
• Internal baffles within the tank provide steady fuel delivery.

FEATURES:

• Internal Tank Baffles: Minimize fuel sloshing for consistent delivery.
• Recessed Mounting: For the fuel pump and sending unit, increasing clearance.
• Powder-Coated Steel Tank: Offers corrosion resistance for longevity.
• Included Mounting Straps and Filler Neck: For easy installation.
• Direct Fit Design: Reduces modifications needed for installation.
• -6AN Fittings: Ensure secure fuel line connections.
• Sending Unit Compatible with Factory Gauges: Retains original gauge functionality.
