Description

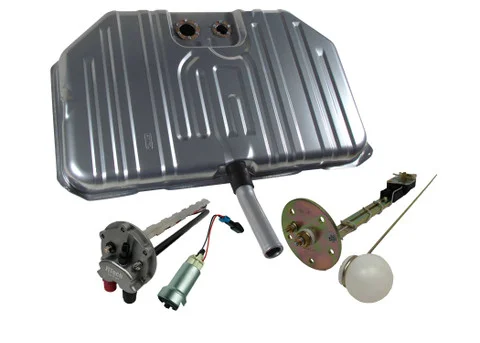

The FiTech 1968-69 Buick Cutlass Notched 440 LPH EFI Fuel Tank Kit (58127) is a comprehensive solution for upgrading your 1968-1969 Buick Special, Skylark, or Cutlass to a modern EFI fuel system. This kit is designed to provide a direct-fit replacement for your factory fuel tank, simplifying the installation process. It includes a baffled fuel tank, a high-flow in-tank fuel pump module, a sending unit for factory gauges, and all necessary mounting hardware.
KEY FEATURES AND BENEFITS:
- Direct-Fit Steel Tank: Designed specifically for 1968-1969 Buick models, ensuring a seamless installation.
- Internal Baffles: Prevent fuel starvation and ensure consistent fuel delivery during aggressive driving.
- High-Flow Fuel Pump: The included in-tank module houses a 440 LPH fuel pump, capable of supporting high-horsepower EFI applications.
- -6 AN Inlet and Outlet Fittings: Provide secure and leak-free fuel line connections.
- Recessed Sending Unit and Pump Mount: Offers added clearance for easier installation.
- Included Mounting Straps: Ensure secure installation of the fuel tank.
SPECIFICATIONS:
- Brand: FiTech Fuel Injection
- Part Number: 58127
- Tank Capacity: 20 gallons
- Pump Flow Rate: 440 LPH
- Fitting Type: -6 AN male O-ring
- Tank Material: Steel, silver powdercoated
- Compatibility: 1968-1969 Buick Special, Skylark, Cutlass (notched corner tank)
- Sending Unit: Included
- Mounting Straps: Included
- Weight: 39 lbs
- Dimensions: 28 × 11 × 47 inches
HOW TO USE:
- Remove Old Tank: Carefully drain and remove the existing fuel tank from your vehicle.
- Install New Tank: Position the FiTech 58127 tank and secure it using the provided mounting straps.
- Connect Sending Unit: Attach the sending unit wiring to your vehicle’s factory gauge wiring.
- Install Pump Module: The pump module is pre-installed within the tank; ensure it is secure.
- Connect Fuel Lines: Attach the -6 AN fuel lines to the inlet and outlet fittings.
- Connect Filler Neck: Attach the filler neck to the tank.
- Test System: Fill the tank with fuel and test the fuel system for leaks and proper operation.
BENEFITS OF USING FiTech 1968-69 BUICK CUTLASS NOTCHED 440 LPH EFI FUEL TANK KIT (58127):
- Complete Fuel System Solution: Provides everything needed for EFI upgrades.
- Consistent Fuel Delivery: The baffled tank design ensures reliable performance.
- High-Flow Capability: Supports high-horsepower applications with the powerful 440 LPH fuel pump.
- Simplified Installation: Direct-fit design and included hardware make the process straightforward.
- Factory Gauge Functionality: Maintains compatibility with the included sending unit.
- Secure Connections: -6 AN fittings ensure leak-free fuel connections.
FEATURES:
- Durable Steel Construction: With a powder-coated finish for corrosion resistance.
- Included Sending Unit: Ensures compatibility with factory gauge systems.
- 440 LPH In-Tank Fuel Pump: Provides high flow for EFI applications.
