FiTech 1971-1972 Chevelle Notched 440 LPH EFI Fuel Tank Kit (58132)

Description

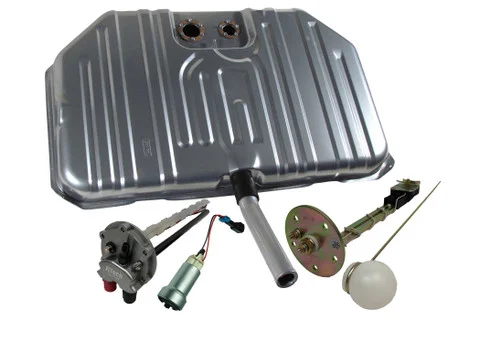

The FiTech 1971-1972 Chevelle Notched 440 LPH EFI Fuel Tank Kit (58132) provides a comprehensive fuel delivery solution for 1971-1972 Chevrolet Chevelle vehicles equipped with a notched corner fuel tank. This kit simplifies the transition to Electronic Fuel Injection (EFI) by including all necessary components for a high-pressure fuel system.

KEY FEATURES AND BENEFITS:

• Direct-Fit Tank: Includes a baffled 20-gallon steel fuel tank designed specifically for Chevelle models.
• High-Flow Fuel Pump: The 440 LPH in-tank fuel pump supports up to 1000 HP, ensuring ample fuel flow for high-performance applications.
• Recessed Sending Unit: Allows for factory gauge compatibility.
• Mounting Straps Included: Facilitate easy installation and secure fitting of the tank.
• Secure Connections: AN-6 inlet/outlet fittings provide leak-free fuel line connections.
• Enhanced Safety: The in-tank pump design minimizes the risk of leaks.
• Modern EFI Solution: Provides a reliable fuel delivery system for classic muscle cars.

SPECIFICATIONS:

• Product: FiTech 58132 Fuel Tank Kit
• Application: 1971-1972 Chevrolet Chevelle (Notched Corner Tank)
• Tank Capacity: 20 Gallons
• Fuel Pump Flow Rate: 440 LPH (approximately 116 GPH)
• Horsepower Support: Up to 1000 HP
• Fitting Type: -6 AN Male O-ring
• Material: Steel, Silver Powdercoated
• Sending Unit: Included
• Mounting Straps: Included
• Baffled Sump: Yes
• Compatibility: 1971-1972 Chevrolet Chevelle with notched corner tank.

HOW TO USE:

• Preparation: Ensure the vehicle is safely supported and the existing fuel system is drained and disconnected.
• Tank Installation: Position the new FiTech 58132 tank into the vehicle, aligning it with the original mounting points.
• Pump Module Installation: Insert the FiTech Go Fuel in-tank module, ensuring it is securely seated in the tank’s recessed mount.
• Sending Unit Installation: Attach the recessed sending unit to the tank, connecting the necessary wiring for factory gauges.
• Fuel Line Connection: Connect the -6 AN inlet and outlet fittings to the appropriate fuel lines, ensuring a tight and leak-free connection.
• Mounting Straps: Secure the tank using the provided mounting straps, ensuring a stable and secure fit.
• Electrical Connections: Connect the fuel pump’s electrical wiring to the vehicle’s electrical system, following the manufacturer’s instructions.
• Fuel Fill and Testing: Fill the tank with fuel and thoroughly test the fuel system for leaks and proper operation.

BENEFITS OF USING THE FiTech 1971-1972 CHEVELLE NOTCHED 440 LPH EFI FUEL TANK KIT (58132):

• Simplified EFI Conversion: The kit provides a complete solution for upgrading to EFI.
• Consistent Fuel Delivery: Internal baffling ensures reliable fuel pressure.
• High-Performance Capability: The high-flow fuel pump supports demanding engine applications.
• Safety Improvements: The in-tank pump design enhances safety by reducing external risks.
• Leak-Free Connections: AN-6 fittings ensure secure fuel line connections.

FEATURES:

• Integrated 440 LPH In-Tank Fuel Pump Module: Ensures high performance and reliability.
• Internal Baffling: Maintains consistent fuel pressure during operation.
• -6 AN Male Fittings: Provide secure connections for fuel lines.
• Silver Powdercoated Steel Construction: Offers durability and corrosion resistance.
• Included Mounting Straps: Ensure secure installation of the tank.
