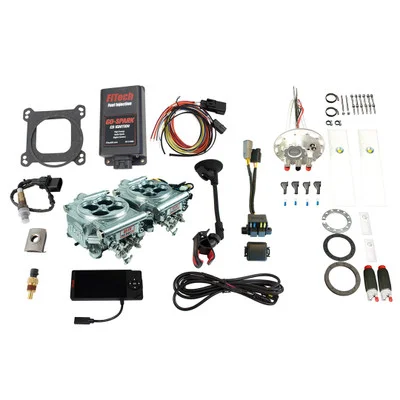

FiTech 2×4 1200HP Bright Aluminum EFI Adder w/ Dual Pump & CDI (96765)

Description

The FiTech 2×4 1200HP Bright Aluminum EFI Adder w/ Dual Pump & CDI (96765) provides a comprehensive solution for converting carbureted high-performance engines to electronic fuel injection (EFI). This kit is designed for V8 engines and supports up to 1200 horsepower, featuring dual 4-barrel throttle bodies, a Go Fuel in-tank dual pump module, and a Go Spark CDI ignition box. The system is engineered to enhance engine performance and efficiency through precise fuel delivery and ignition control.

KEY FEATURES AND BENEFITS:

• Supports up to 1200 HP: Ideal for high-performance engine applications.
• Dual 4-Barrel Throttle Bodies: Provide increased airflow for powerful engines.
• Go Fuel In-Tank Dual Pump Module: Ensures reliable and consistent fuel delivery.
• Go Spark CDI Ignition Box: Enhances combustion for improved power output.
• Handheld Touchscreen Controller: Allows for easy system monitoring and adjustments.
• Complete Master Kit: Includes all necessary components for EFI conversion.
• Self-Tuning Capabilities: With user-tunable options.
• Power Adder Compatible: Suitable for boost and nitrous oxide applications.

SPECIFICATIONS:

• Maximum Horsepower: 1200 HP
• Injection Style: Throttle body
• Timing Control: Compatible
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank dual pump)
• Throttle Body: Dual 4-barrel square bore
• Venturi: 8 (44mm diameter)
• Airflow: 1700 CFM
• Injectors: 80 lbs/hr
• Fuel Type: Gasoline, Alcohol, Methanol, Flex
• Metering Style: Speed density (MAP-N)

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and related components.
• Fuel System Installation: Install the Go Fuel in-tank dual pump module in the fuel cell or tank, ensuring proper connections.
• Throttle Body Installation: Mount the dual 4-barrel throttle bodies onto the intake manifold, securing them properly.
• Sensor Installation: Install the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor according to the provided instructions.
• Wiring Harness Connection: Connect the wiring harness to the throttle bodies, sensors, fuel pump, and CDI ignition box.
• CDI Ignition Installation: If included, mount and connect the Go Spark CDI ignition box.
• Handheld Controller Setup: Connect the handheld touchscreen controller and mount it in a convenient location.
• Initial Setup: Follow the on-screen prompts on the handheld controller to configure the system.
• Fuel Pressure Adjustment: Verify proper fuel pressure.
• Testing and Tuning: Start the engine and use the handheld controller to monitor and adjust system parameters as needed.

BENEFITS OF USING FITECH 2×4 1200HP BRIGHT ALUMINUM EFI ADDER W/ DUAL PUMP & CDI (96765):

• Improved engine performance and throttle response.
• Enhanced fuel efficiency and reduced emissions.
• Precise fuel and ignition control for optimal power delivery.
• Elimination of carburetor-related issues and inconsistencies.
• Modernized engine management with user-friendly touchscreen control.
• Increased reliability.
• Ability to use multiple fuel types.

FEATURES:

• Integrated ECU within the throttle body.
• Returnless fuel system with internal regulator.
• Cast aluminum throttle body construction.
• Polished throttle body finish.
• Comprehensive wiring harness included.
• Complete sensor suite (O2, MAP, IAT, TPS).
• IAC motor included.
• Pro-tuning laptop software.
• Mini USB cable included.
