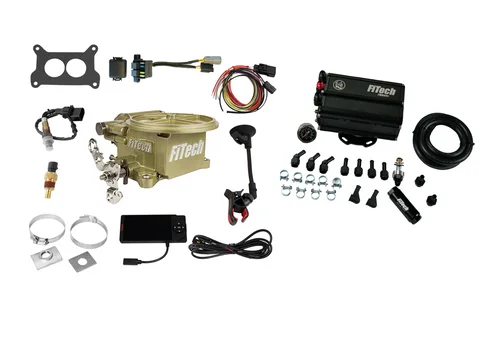

FiTech 2 Barrel 400 HP Classic Gold EFI w/ Force Fuel (35591)

Description

The FiTech 2 Barrel 400 HP Classic Gold EFI w/ Force Fuel (35591) provides a straightforward solution for converting carbureted vehicles to electronic fuel injection. Designed for engines up to 400 HP, this kit includes everything needed for a complete EFI upgrade, including a Force Fuel mini delivery system for simplified installation.

KEY FEATURES AND BENEFITS:

• Complete EFI Conversion Kit: Includes fuel delivery, ECU, and handheld controller.
• Designed for 2-Barrel Engines: Supports engines up to 400 HP.
• Force Fuel Mini System: Allows use of existing low-pressure fuel pumps.
• Self-Tuning Capabilities: Ensures easy setup and operation.
• Improved Performance: Enhances fuel efficiency compared to traditional carburetors.
• Handheld Controller: Features a 4.5-inch display for monitoring and adjustments.
• Includes 255 LPH Fuel Pump: Integrated within the mini Force Fuel unit.

SPECIFICATIONS:

• Maximum Horsepower: 400 HP
• Injection Style: Throttle body
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: Holley 2-barrel (2300)
• Airflow Rate: 500 CFM
• Injector Size: 62 lbs/hr
• Fuel Pump Flow: 340 LPH (within Force Fuel unit), 255 LPH (within mini Force Fuel unit)
• Venturi: 2 x 44 mm
• ECU Included: Yes
• Fuel Pump Included: Yes
• Timing Control: Compatible
• Fuel Type: Alcohol, Gasoline, Methanol, Flex
• Compatibility: Vehicles with a Holley 2300 2-barrel intake manifold flange

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and fuel lines.
• Installation of Throttle Body: Mount the FiTech 2-barrel throttle body onto the intake manifold using the provided gasket.
• Fuel System Setup: Install the Force Fuel mini delivery system, connecting it to the existing low-pressure fuel pump and routing the high-pressure fuel lines to the throttle body.
• Wiring: Connect the wiring harness to the ECU, fuel pump, ignition, power, and tach signals.
• Sensor Installation: Install the oxygen sensor, coolant sensor, MAP sensor, IAT sensor, and TPS sensor.
• Handheld Controller: Connect the handheld controller and follow the on-screen instructions for initial setup and calibration.
• Initial Start-up: Start the engine and allow the self-tuning feature to calibrate the fuel mixture.
• Fine Tuning: Use the handheld controller to make any necessary adjustments.

BENEFITS OF USING THE FITECH 2 BARREL 400 HP CLASSIC GOLD EFI W/ FORCE FUEL (35591):

• Enhanced Engine Performance: Improves responsiveness and overall power.
• Improved Fuel Efficiency: Reduces emissions and enhances economy.
• Simplified Cold Starts: Provides smoother idle and easier startup.
• Elimination of Carburetor Tuning Issues: Reduces maintenance and tuning hassles.
• Increased Reliability: Consistent performance across various conditions.
• Easier Installation: More straightforward than many other EFI systems.

FEATURES:

• Gold Finish Cast Aluminum Throttle Body: Durable and stylish design.
• Integrated ECU: For simplified wiring and setup.
• External Fuel Pump: Integrated in the Force Fuel unit for reliability.
• Includes All Necessary Sensors and Wiring: For a complete installation.
• 4.5-Inch Display Handheld Controller: Facilitates easy adjustments and monitoring.
• Surge Tank within the Force Fuel Unit: Ensures steady fuel delivery.
• 10 Micron Fuel Filter: Ensures clean fuel supply.
• Includes AN Fittings and Fuel Line: For secure connections.
