FiTech 3×2 Tri Power 600 HP Classic Gold EFI w/In-Tank Module (36310)

Description

The FiTech 3×2 Tri Power 600 HP Classic Gold EFI w/In-Tank Module (36310) offers a complete electronic fuel injection solution for high-performance engines. This system provides a 3×2 Tri Power configuration, delivering precise fuel control and improved engine performance. Designed for engines producing up to 600 horsepower, this kit includes all necessary components for a comprehensive EFI upgrade.

KEY FEATURES AND BENEFITS:

• 3×2 Tri Power throttle body: Enhanced airflow and fuel distribution for optimal performance.
• Rated for 600 horsepower: Suitable for a range of performance applications.
• Go Fuel returnless in-tank fuel module: Ensures reliable fuel delivery.
• Timing control compatibility: Allows for precise engine tuning.

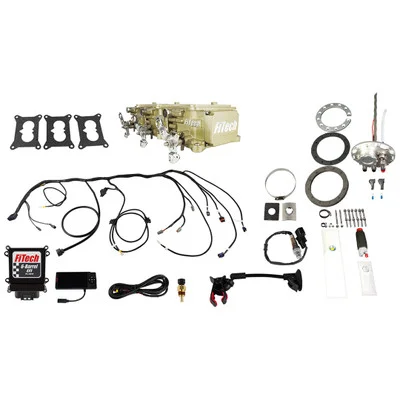

• Complete kit: Includes ECU, fuel pump, and all required sensors for installation.
• Speed density (MAP-N) metering: Offers accurate fuel management.
• Compatible with various fuel types: Works with alcohol, gasoline, methanol, and flex fuel.
• Classic gold finish: Adds a distinctive aesthetic to your engine bay.

SPECIFICATIONS:

• Maximum horsepower: 600 HP
• Injection style: Throttle body
• Timing control: Yes
• Power adder: No
• ECU included: Yes
• Fuel pump included: Yes
• Transmission controller: No
• Metering style: Speed density (MAP-N)
• Throttle body mounting flange: Triple Holley 2-barrel
• Venturi quantity: 6
• Venturi diameter: 44 mm
• Airflow rate: 1500 cfm
• Injector size: 80 lbs/hr
• Fuel pump style: In-tank
• Fuel compatibility: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Ensure your engine is properly prepped for EFI conversion. Disconnect the battery.
• Fuel system installation: Install the in-tank fuel pump module and connect fuel lines according to the provided diagrams.
• Throttle body mounting: Mount the triple 2-barrel throttle bodies onto your intake manifold.
• Sensor installation: Install all included sensors (MAP, IAT, TPS, Oxygen) in their designated locations.
• Wiring harness connection: Connect the wiring harness to the ECU and all sensors, following the wiring diagram.
• ECU mounting: Secure the ECU in a suitable location.
• Initial setup: Connect the calibration module and follow the on-screen instructions for initial setup and calibration.
• Fuel pressure adjustment: Adjust the fuel pressure using the included regulator.
• Testing and tuning: Start the engine and verify proper operation. Fine-tune the system as needed using the calibration module.

BENEFITS OF USING THE FITECH 3×2 TRI POWER 600 HP CLASSIC GOLD EFI W/IN-TANK MODULE (36310):

• Improved engine performance: Enhanced throttle response and overall efficiency.
• Precise fuel control: Ensures optimal efficiency and performance.
• Simplified installation: Complete kit for easy setup.
• Compatibility with multiple fuel types: Versatile for various applications.
• Enhanced aesthetics: Classic gold finish for a stylish engine bay.
• Reliable fuel delivery: In-tank fuel pump ensures consistent supply.
• Easy calibration: Calibration module allows for real-time adjustments.

FEATURES:

• Triple 2-barrel throttle body configuration: Optimizes airflow and fuel delivery.
• 80 lbs/hr fuel injectors: High-flow capacity for performance applications.
• Integrated sensors: Includes MAP, IAT, TPS, and Oxygen sensors.
• In-tank fuel pump: Efficient fuel supply system.
• Speed density (MAP-N) metering: Provides accurate fuel management.
• Calibration module: Facilitates real-time adjustments during operation.
• Universal fitment: Compatible with various engine applications.
• Complete wiring harness: All necessary components included for installation.
