FiTech 750HP Rectangle Port EFI 4150 Flange Uni Brilliant (30-10-610)

Description

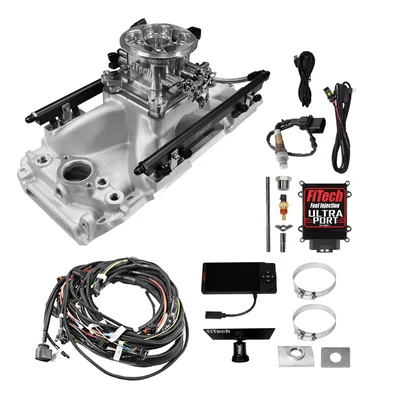

The FiTech 750HP Rectangle Port EFI 4150 Flange Uni Brilliant (30-10-610) is a comprehensive electronic fuel injection solution designed to enhance the performance of Big Block Chevy engines with rectangle port cylinder heads. This kit provides a complete fuel management system, including an intake manifold, throttle body, injectors, and an Engine Control Module (ECM), offering both self-tuning and user-adjustable capabilities. It is rated for up to 750 horsepower on gasoline and supports various fuel types, including E85.

KEY FEATURES AND BENEFITS:

• Designed for Big Block Chevy engines: Specifically for engines with rectangle port cylinder heads.
• Rated for up to 750 horsepower: Optimized for performance on gasoline.
• Complete EFI system: Includes intake manifold, throttle body, injectors, and ECM.
• Self-tuning and user-tunable: Provides precise fuel control for optimal performance.
• Wide fuel compatibility: Supports gasoline, E85, alcohol, and methanol.
• All necessary sensors included: Comes with MAP, IAT, TPS, IAC, and wiring harness.
• 4-barrel square bore throttle body: 4150 flange for easy installation.
• 4.5 in. display: User interface for monitoring and adjustments.
• Multi-port fuel rails included.
• Timing control compatible.

SPECIFICATIONS:

• Engine Compatibility: Big Block Chevy (BBC) with Rectangle Port Heads
• Maximum Horsepower: 750 hp (gasoline)
• Throttle Body: 4-barrel square bore (4150 flange)
• Airflow: 1,000 cfm
• Injector Size: 55 lbs/hr
• Venturi Diameter: 45mm
• Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
• Fuel Compatibility: Gasoline, E85, Alcohol, Methanol
• ECM Included: Yes
• Sensors Included: MAP, IAT, TPS, IAC, Oxygen
• User Interface: 4.5 in. display
• Intake Material: Cast Aluminium
• Compatibility: 1965 and up Chevy Big Block engines.

HOW TO USE:

• Preparation: Ensure the engine is properly prepared and free of any leaks. Disconnect the battery.
• Intake Installation: Install the provided intake manifold onto the cylinder heads, ensuring proper gasket sealing.
• Throttle Body Installation: Mount the throttle body onto the intake manifold, connecting the TPS and IAC sensors.
• Injector Installation: Install the fuel injectors into the fuel rails and connect the fuel lines.
• Wiring Harness Connection: Connect the wiring harness to the ECM and all necessary sensors (MAP, IAT, Oxygen).
• ECM Mounting: Mount the ECM in a safe and accessible location.
• Sensor Connections: Connect all sensors to the wiring harness according to the provided instructions.
• Fuel System Setup: Connect the fuel lines to the fuel rails (fuel pump and regulator are required but not provided).
• User Interface Setup: Connect and mount the 4.5 in. display.
• Initial Setup: Power on the system and follow the on-screen instructions for initial setup and calibration.
• Tuning: Utilize the self-tuning feature or manually adjust settings using the user interface.
• Testing: Start the engine and verify proper operation and fuel delivery.

BENEFITS OF USING THE FITECH 750HP RECTANGLE PORT EFI 4150 FLANGE UNI BRILLIANT (30-10-610):

• Improved Fuel Efficiency: Enhanced performance with precise fuel control.
• Optimal Engine Operation: Ensures consistent engine performance.
• Simplified Installation: Complete kit for an easy setup.
• Flexibility: Ability to run various fuel types.
• User-friendly Interface: Easy monitoring and adjustments.
• Reduced Emissions: More efficient fuel delivery leads to lower emissions.

FEATURES:

• Cast aluminum intake manifold with a natural finish.
• Polished cast aluminum throttle body.
• 55 lbs/hr fuel injectors included.
• 45mm venturi diameter.
• 1,000 cfm airflow rate.
• Speed density (Map-N) or speed throttle (Alpha-N) metering.
• Multi-port fuel rails.
• Calibration module included.
