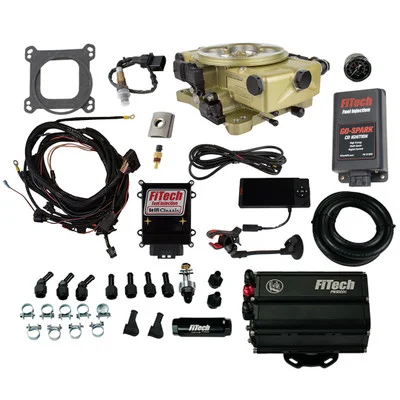

FiTech Classic Gold 650 HP EFI w/ Force Fuel Tank & CDI (93557)

Description

The FiTech Classic Gold 650 HP EFI w/ Force Fuel Tank & CDI (93557) is a comprehensive electronic fuel injection (EFI) master kit designed to modernize classic carbureted engines. This kit replaces traditional carburetors with a self-tuning EFI system, enhancing engine performance, fuel efficiency, and overall drivability. It features a 4-barrel throttle body, a Go-Spark CDI ignition box, and a Force Fuel Mini surge tank for a complete fuel delivery solution.

KEY FEATURES AND BENEFITS:

• The FiTech 93557 kit offers several key advantages. It converts your classic engine to EFI, eliminating common carburetor issues like flooding and vapor lock.
• The self-tuning feature automatically adjusts fuel delivery for optimal performance, while the included CDI ignition enhances starting, idle quality, and throttle response.
• The Force Fuel Mini surge tank ensures a consistent fuel supply, preventing fuel starvation.
• This kit supports engines up to 650 horsepower, delivering modern performance with a classic aesthetic.

SPECIFICATIONS:

• Fuel Injection Style: Throttle body
• Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
• Maximum Horsepower with Gas: 650 HP
• Self Tuning: Yes
• User Tunable: Yes
• Fuel System Included: Surge tank (Go Fuel Mini Force Fuel)
• Ignition System Included: Ignition box (Go-Spark CDI)
• User Interface: 4.5 in. display
• Metering Style: Speed density
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi Quantity: 4
• Venturi Diameter (mm): 44.00mm
• Airflow Rate (cfm): 950 cfm
• Injector Size (lbs/hr): 80 lbs./hr.

HOW TO USE:

• Remove the Existing Carburetor: Disconnect and remove the existing carburetor and associated components.
• Install the Throttle Body: Mount the FiTech 4-barrel throttle body onto the intake manifold using the 4150 flange.
• Mount the ECU: Secure the compact ECU in a suitable location, ensuring it is protected from heat and moisture.
• Install the Fuel Surge Tank: Mount the Force Fuel Mini surge tank and connect the fuel lines according to the instructions.
• Install the Go-Spark CDI Ignition: Connect the Go-Spark CDI box to the distributor and ignition system, following the wiring diagram.
• Connect the Sensors: Install and connect the oxygen sensor, MAP sensor, IAT sensor, TPS sensor, and IAC motor.
• Connect the Wiring Harness: Connect the provided wiring harness to the throttle body, sensors, and ignition system.
• Initial Setup: Use the 4.5-inch display to perform the initial setup and configuration.
• Start and Self-Tune: Start the engine and allow the self-tuning feature to adjust the fuel delivery.

BENEFITS OF USING THE FITECH CLASSIC GOLD 650 HP EFI W/ FORCE FUEL TANK & CDI (93557):

• Improved engine performance and horsepower.
• Enhanced fuel efficiency.
• Elimination of carburetor-related issues.
• Smoother idle and throttle response.
• Modern performance with a classic aesthetic.
• Simplified installation and self-tuning capabilities.

FEATURES:

• 4-barrel throttle body design, 950 cfm flow.
• 80 lbs/hr fuel injectors.
• Go-Spark CDI ignition for improved spark delivery.
• Force Fuel Mini surge tank with 255 lph pump.
• 4.5-inch display for user interface and monitoring.
• Self-tuning ECU for automatic fuel adjustments.
• Compatible with various distributor types.
• Complete wiring harness and sensor package.
• Gold colored throttle body for a classic look.
