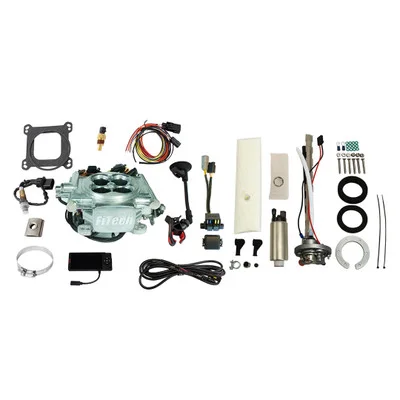

FiTech EFI 4 600HP Power Adder Bright Aluminum w/ 340 LPH Pump (36606)

Description

The FiTech EFI 4 600HP Power Adder Bright Aluminum w/ 340 LPH Pump (36606) is a complete electronic fuel injection system designed for high-performance engines utilizing forced induction. This kit provides self-tuning capabilities, ensuring optimal air/fuel ratios for boosted or nitrous applications. It’s rated for up to 600 horsepower and includes all necessary components for a comprehensive EFI upgrade.

KEY FEATURES AND BENEFITS:

• Self-Learning Functionality: Simplifies the tuning process for optimal performance.
• Wide-Band Oxygen Sensor: Allows for precise air/fuel ratio monitoring.
• Complete Kit: Includes an in-tank fuel pump, 80 lb/hr injectors, and all necessary sensors.
• Timing Control Compatible: Supports adjustments based on boost or nitrous.
• Multiple Fuel Types: Compatible with gasoline, alcohol, methanol, and flex fuel.
• Ample Airflow: The 850 CFM throttle body ensures sufficient airflow for high-performance applications.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control Compatible: Yes
• Power Adder Compatible: Yes (Boost/Nitrous)
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank)
• Metering Style: Speed density (MAP-N)
• Throttle Body: 4-barrel square bore, 850 CFM
• Injectors: 80 lbs/hr
• Fuel Types: Alcohol, Gasoline, Methanol, Flex
• Venturi Diameter: 43 mm
• Weight: 18 lbs
• Dimensions: 16 × 23 × 9 in

HOW TO USE:

• Preparation: Disconnect the negative battery terminal. Remove the existing carburetor and intake manifold (if necessary).
• Installation: Mount the FiTech throttle body onto the intake manifold. Install the included fuel pump in the fuel tank. Connect the wiring harness to the ECU and all sensors (MAP, IAT, TPS, oxygen sensor).
• Fuel System: Connect the fuel lines to the fuel pump, fuel pressure regulator, and throttle body. Ensure all connections are secure and leak-free.
• Wiring: Connect the wiring harness to the vehicle’s power and ground sources. Connect the oxygen sensor to the exhaust system.
• Initial Setup: Connect the calibration module and follow the on-screen instructions to input engine parameters.
• Startup and Tuning: Start the engine and allow the self-learning function to adjust the fuel delivery. Monitor the air/fuel ratio using the calibration module.
• Final Adjustments: After the self-learning process, make any necessary fine-tuning adjustments using the calibration module.

BENEFITS OF USING THE FITEC EFI 4 600HP POWER ADDER BRIGHT ALUMINUM W/ 340 LPH PUMP (36606):

• Improved Engine Performance: Enhances overall efficiency and responsiveness.
• Precise Fuel Delivery: Offers accurate air/fuel ratio control for optimal performance.
• Simplified Tuning: Self-learning capabilities make setup easy.
• Enhanced Throttle Response: Delivers better drivability and performance.
• Compatibility: Works well with boosted and nitrous applications.

FEATURES:

• 850 CFM 4-Barrel Throttle Body Design: Ensures high airflow for performance engines.
• 80 lbs/hr High Flow Fuel Injectors: Provides reliable fuel delivery.
• Integrated In-Tank High Pressure Fuel Pump: For consistent fuel supply.
• Wide-Band Oxygen Sensor: Allows for real-time air/fuel ratio monitoring.
• Speed Density (MAP-N) Fuel Metering: Ensures efficient operation.
• Electric Cooling Fan Control: Ability to control cooling fans for optimal temperature management.
• Supports Multiple Fuel Types: Flexibility in fuel options.
• ECU and Complete Wiring Harness Included: For straightforward installation.
• Calibration Module: Simplifies initial setup and tuning process.
• Fuel Pressure Regulator Included: Ensures consistent fuel pressure.
