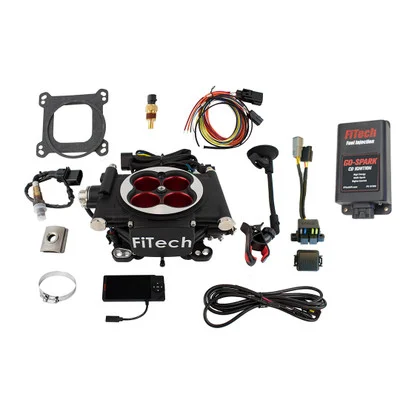

FiTech EFI 4 600HP System Power Adder Black Finish w/CDI Box (93004)

Description

The FiTech EFI 4 600HP System Power Adder Black Finish w/CDI Box (93004) provides a straightforward path to modern electronic fuel injection for classic engines. Designed for engines producing between 200 and 600 horsepower, this throttle body injection system replaces traditional 4-barrel carburetors, offering improved performance and fuel efficiency. It features a self-tuning ECU, integrated fuel pressure regulator, and compatibility with boosted and nitrous applications.

KEY FEATURES AND BENEFITS:

• Self-Tuning Capabilities: Eliminates the need for complex adjustments.
• Integrated ECU: Mounted directly on the throttle body for continuous optimization of fuel delivery.
• Power Adder Compatibility: Supports turbochargers, superchargers, and nitrous oxide.
• Complete Kit: Includes all necessary sensors, wiring harness, and a hand-held touchscreen controller for easy setup.
• High Performance: 850 CFM throttle body and 80 lbs./hr. injectors ensure adequate fuel and air delivery.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control: Yes
• Power Adder Compatible: Yes (Boost/Nitrous)
• ECU Included: Yes
• Fuel Pump: Not included
• Transmission Controller: No
• Metering Style: Speed density (MAP-N)
• Throttle Body Flange: 4-barrel square bore
• Airflow: 850 CFM
• Injector Size: 80 lbs./hr.
• Venturi Diameter: 43mm
• Sensors: Oxygen, MAP, IAT, TPS
• Fuel Type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Remove the existing 4-barrel carburetor and clean the intake manifold surface.
• Installation: Mount the FiTech 93004 throttle body onto the intake manifold using the 4-barrel flange.
• Sensor Installation: Install the provided oxygen, MAP, IAT, and TPS sensors.
• Wiring: Connect the wiring harness to the vehicle’s electrical system, following the provided instructions.
• Fuel System: Install a compatible fuel pump and connect the fuel lines to the throttle body’s fuel inlet.
• ECU Setup: Use the hand-held touchscreen controller to input basic engine parameters and initiate the self-tuning process.
• Initial Start: Start the engine and allow the ECU to learn and adjust fuel delivery.
• Fine Tuning: Monitor engine performance and make adjustments using the hand-held controller as needed.

BENEFITS OF USING THE FITECH EFI 4 600HP SYSTEM POWER ADDER BLACK FINISH W/CDI BOX (93004):

• Improved Fuel Efficiency: Compared to traditional carburetors.
• Enhanced Throttle Response: Overall engine performance is improved.
• Simplified Transition to EFI: Self-tuning functionality makes it easier.
• Compatibility with Boosted and Nitrous Applications: Versatile performance enhancements.
• Reduced Maintenance: Lower tuning requirements.
• Modern Engine Management: Ideal for classic vehicles.

FEATURES:

• 850 CFM Airflow Capacity: Supports high-performance applications.
• 80 lbs./hr. Fuel Injectors: Ensures adequate fuel delivery.
• Built-In Fuel Pressure Regulator: Maintains optimal pressure.
• Hand-Held Touchscreen Controller: For setup and monitoring.
• Speed Density Metering: For accurate fuel management.
• CDI Box Included: Enhances ignition performance.
• 43mm Venturi Diameter: Optimizes airflow.
• Compatible with Multiple Fuel Types: Increases flexibility in fuel choice.
• Three Fuel Inlet Connection Choices: For versatile installation options.
