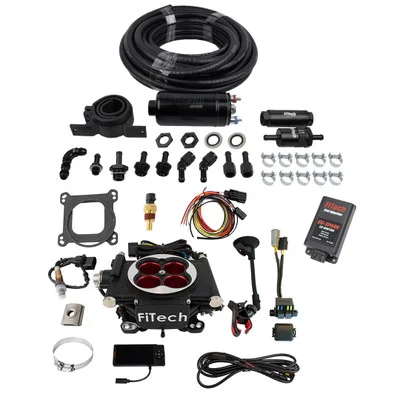

FiTech EFI 4 Power Adder Kit w/ Inline Fuel Pump & CDI Box (93104)

Description

The FiTech EFI 4 Power Adder Kit w/ Inline Fuel Pump & CDI Box (93104) is a comprehensive solution for upgrading your engine to modern electronic fuel injection. Designed for engines producing 250 to 600 horsepower, this system is particularly well-suited for those incorporating power adders like superchargers, turbochargers, or nitrous oxide. It features a throttle body injection setup with self-tuning capabilities, simplifying the transition from carbureted systems. The included Force Fuel system allows for easy installation by utilizing your existing fuel system and is compatible with a variety of fuel types.

KEY FEATURES AND BENEFITS:

• Significant Upgrade: Enhances fuel delivery and engine control.
• Self-Tuning ECU: Automatically adjusts for optimal performance.
• Force Fuel System: Eliminates the need for a new high-pressure fuel line from the tank.
• 80 lbs/hr Injectors: Ensure adequate fuel for high-performance applications.
• 850 CFM Throttle Body: Provides efficient airflow.
• Timing Control Compatibility: Allows for precise ignition adjustments.
• Fuel Flexibility: Compatible with alcohol, gasoline, methanol, and flex fuels.
• Real-Time Display: 4.5-inch display provides user adjustability and data monitoring.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control: Yes
• Power Adder Compatibility: Yes (Boost/Nitrous)
• ECU Included: Yes (Self-tuning)
• Fuel Pump Included: Yes (External/Force Fuel System)
• Throttle Body: 4-barrel square bore (4150 flange), 850 CFM
• Injectors: 80 lbs/hr
• Fuel Pump Flow Rate: 340 LPH (Force Fuel), 255 LPH (External)
• Metering Style: Speed density (MAP-N)
• Display: 4.5 inch
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
• Installation: Mount the FiTech throttle body onto the intake manifold. Install the Force Fuel system, connecting it to your existing fuel system.
• Sensor Installation: Install the included MAP, IAT, TPS, and oxygen sensors according to the provided instructions.
• Wiring: Connect the wiring harness to the sensors, ECU, and ignition box. Ensure all connections are secure.
• Fuel Pump Connection: Connect the external fuel pump and ensure proper fuel pressure regulation.
• ECU Setup: Power on the system and use the 4.5-inch display to input basic engine parameters.
• Initial Start: Start the engine and allow the self-tuning ECU to adjust.
• Fine Tuning: Use the display to fine-tune air/fuel ratios and ignition timing as needed.

BENEFITS OF USING THE FITECH EFI 4 POWER ADDER KIT W/ INLINE FUEL PUMP & CDI BOX (93104):

• Simplified EFI Conversion: With the Force Fuel system.
• Improved Fuel Efficiency: Enhances overall performance.
• Enhanced Engine Control: Allows for tunability.
• Reliable Operation: Under various driving conditions.
• Compatibility with Power Adders: Increases horsepower potential.

FEATURES:

• Built-In Fuel Pressure Regulator: For consistent fuel delivery.
• Fuel Compatibility: Capable of handling E85, Methanol, and other alcohol-based fuels.
• User Interface Display: For real-time engine information.
• CDI Ignition Box Included: For improved ignition performance.
• 43mm Venturi Diameter: Ensures proper airflow.
• Cast Aluminum Throttle Body: Durable and efficient.
• Speed Density Metering: For accurate fuel management.
