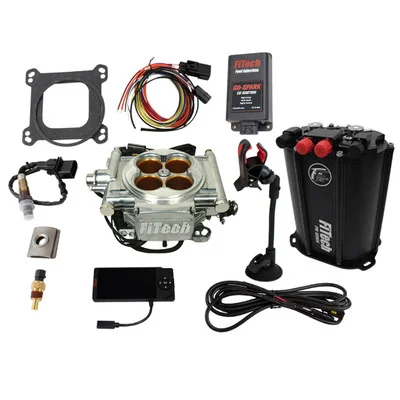

FiTech EFI 8 1200HP Bright Aluminum Dual Pump Force Fuel & CDI (93543)

Description

The FiTech EFI 8 1200HP Bright Aluminum Dual Pump Force Fuel & CDI (93543) provides a comprehensive electronic fuel injection and ignition solution for high-performance engines. Designed for boosted or nitrous applications, this kit delivers precise fuel and spark control, supporting up to 1200 horsepower.

KEY FEATURES AND BENEFITS:

• Supports up to 1200 horsepower, ideal for high-performance, forced-induction engines.
• Single 4-barrel throttle body with 8 high-flow injectors (80 lbs/hr) for optimal fuel delivery.
• Dual-pump fuel system with surge tank design ensures consistent fuel pressure and prevents fuel starvation.
• CDI ignition system improves spark energy for enhanced combustion and performance.
• Self-tuning capabilities simplify setup, while user-tunable options allow for precise adjustments.
• Included 4.5-inch handheld display and Pro-tuning laptop software for easy monitoring and adjustments.
• Built-in timing control based on boost or nitrous input.

SPECIFICATIONS:

• Fuel Injection Style: Throttle body
• Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
• Maximum Horsepower with Gas: 1,200 HP
• Timing Control Compatible: Yes
• ECM Included: Yes
• Self Tuning: Yes
• User Tunable: Yes
• Fuel System Included: Surge tank
• Ignition System Included: Ignition box
• Throttle Body Airflow Rate (cfm): 850 cfm
• Injector Size (lbs/hr): 80 lbs./hr.

HOW TO USE:

• Install the throttle body assembly onto the intake manifold using the provided gasket.
• Mount the Go Fuel Dual Force fuel system, ensuring proper fuel line connections.
• Install the Go-Spark CDI ignition box and connect the wiring harness to the distributor.
• Connect the included sensors (O2, MAP, IAT, TPS, coolant) to their respective locations.
• Connect the wiring harnesses to the throttle body, fuel system, and ignition box.
• Connect the handheld controller and power supply.
• Use the handheld controller or Pro-tuning software to input engine parameters and initiate the self-tuning process.
• Fine-tune the system as needed using the handheld controller or laptop software.
• Verify fuel pressure and ignition timing for optimal performance.

BENEFITS OF USING THE FITECH EFI 8 1200HP BRIGHT ALUMINUM DUAL PUMP FORCE FUEL & CDI (93543):

• Improved fuel efficiency and performance compared to traditional carburetors.
• Precise fuel and ignition control for optimal engine operation.
• Reduced risk of fuel starvation with the dual-pump surge tank system.
• Enhanced spark energy for better combustion and power output.
• Simplified setup and tuning with self-tuning capabilities.
• Ability to monitor and adjust engine parameters in real-time.
• Increased engine reliability.

FEATURES:

• Annular discharge design with 20 jet streams for improved fuel atomization.
• Built-in 2.5 BAR MAP sensor for accurate boost pressure readings.
• Dual internal fuel pressure regulators maintaining 58 psi.
• Compatible with various distributor types (HEI, points, non-magnetic pickup).
• Data logging capabilities for detailed performance analysis.
• Mini USB cable included for easy laptop connectivity.
• Versatile mounting bracket for the fuel surge tank.
• 8 high-flow injectors.
