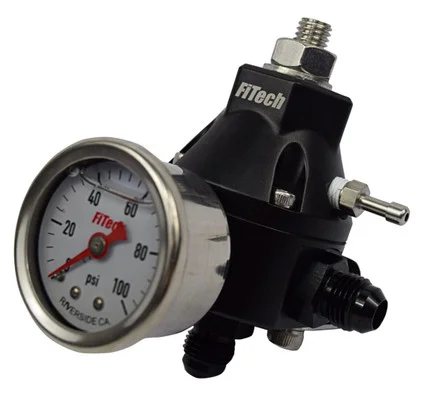

FiTech Fuel Pressure Regulator w/Gauge & Fittings (54001)

Description

The FiTech Fuel Pressure Regulator w/Gauge & Fittings (54001) allows for precise control of fuel pressure in electronic fuel injection (EFI) systems. This single-outlet regulator is designed to support up to 1,000 horsepower on gasoline engines. Constructed from billet aluminum, it features -6 ORB ports and an adjustable pressure range of 30 to 70 psi. The regulator includes a vacuum/boost reference port, making it suitable for boosted applications, and a gauge port for monitoring fuel pressure. A liquid-filled gauge and mounting bracket are included for easy installation.

KEY FEATURES AND BENEFITS:

• Adjustable Fuel Pressure: Allows precise setting of fuel pressure between 30 and 70 psi.
• High-Flow Compatibility: Designed to work with high-flow fuel pumps.
• Boosted Application Ready: Includes a vacuum/boost reference port.
• Durable Construction: Billet aluminum construction for strength and longevity.
• Fuel Compatibility: Viton diaphragm compatible with various gasoline blends, including E85.
• Complete Kit: Includes a liquid-filled pressure gauge, mounting bracket, and AN fittings.
• High Horsepower Support: Supports up to 1,000 horsepower on gasoline engines.

SPECIFICATIONS:

• Brand: FiTech Fuel Injection
• Part Number: 54001
• Pressure Range: 30-70 psi
• Regulator Style: Return
• Location: Inline
• Inlet/Outlet Size: -6 AN
• Material: Billet Aluminum
• Ports: Vacuum/Boost, Gauge
• Horsepower Support: 1,000 hp (gas)

HOW TO USE:

• Mounting: Secure the regulator using the included mounting bracket in a suitable location.
• Plumbing: Connect the fuel inlet and outlet lines to the -6 AN ports.
• Return Line: Connect the return line to the appropriate -6 AN port.
• Gauge Installation: Install the liquid-filled pressure gauge into the gauge port.
• Vacuum/Boost Connection: If applicable, connect the vacuum/boost reference line.
• Pressure Adjustment: Use the adjustment screw to set the desired fuel pressure.
• Testing: Start the engine and verify the fuel pressure using the gauge.
• Fine-Tuning: Make necessary adjustments to the fuel pressure as needed.

BENEFITS OF USING THE FITECH FUEL PRESSURE REGULATOR W/GAUGE & FITTINGS (54001):

• Ensures consistent and accurate fuel delivery to the engine.
• Optimizes engine performance and efficiency.
• Reduces the risk of fuel-related issues.
• Provides precise control over fuel pressure in EFI systems.
• Allows for easy monitoring of fuel pressure.

FEATURES:

• Single outlet configuration.
• -6 ORB inlet and outlet ports.
• Integrated gauge port.
• Included mounting bracket.
• Included AN fittings.
• Viton diaphragm.
• Liquid filled pressure gauge.
• Vacuum/Boost reference port.
• Rebuildable design.
• Black anodized finish.
