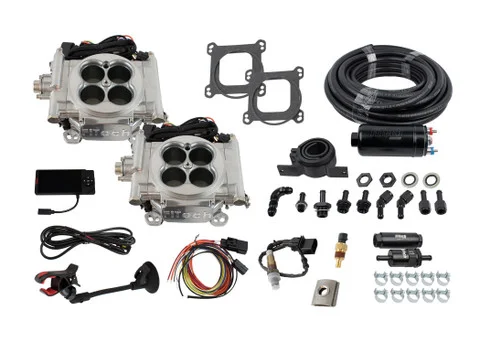

FiTech Go EFI 2×4 Aluminum Master Kit + In-line Fuel Pump (31061)

Description

The FiTech Go EFI 2×4 Aluminum Master Kit + In-line Fuel Pump (31061) simplifies the transition from dual quad carburetors to electronic fuel injection. This kit is designed for naturally aspirated engines up to 625 horsepower, providing improved performance and drivability. It features a self-tuning system that automatically adjusts fuel delivery and includes an inline fuel pump kit for a complete installation.

KEY FEATURES AND BENEFITS:

• Bolt-On Solution: Designed for popular dual quad manifolds, eliminating the need for adapters.
• Self-Tuning Feature: Automatically calibrates fuel delivery, adapting to various driving and weather conditions.
• Complete Fuel Delivery Solution: Includes a 255 LPH inline fuel pump, fuel hose, and filters.
• Handheld Touchscreen Controller: Enables quick and easy adjustments.

SPECIFICATIONS:

• Maximum Horsepower: 625 HP (Naturally Aspirated)
• Injection Style: Throttle Body
• Throttle Body Mounting Flange: Dual 4-Barrel Square Bore
• Injector Size: 80 lbs/hr
• Fuel Pump Flow Rate: 255 LPH
• Venturi Diameter: 43 mm
• Airflow Rate: 850 CFM
• Fuel Compatibility: Gasoline, Alcohol, Methanol, Flex Fuel
• Metering Style: Speed Density (Map-N) or Speed Throttle (Alpha-N)

HOW TO USE:

• Remove Existing Components: Take out dual quad carburetors and intake manifold gaskets.
• Install Throttle Bodies: Mount the FiTech throttle bodies onto the dual quad intake manifold.
• Fuel Pump Installation: Position the inline fuel pump and filters in a suitable location.
• Connect Fuel Lines: Attach lines from the fuel tank to the fuel pump and then to the throttle bodies.
• Sensor Installation: Install the provided sensors (O2, MAP, IAT, TPS) and connect them to the wiring harness.
• Wiring Harness Connection: Connect the wiring harness to the ECU and the vehicle’s electrical system.
• Connect Handheld Controller: Follow the on-screen instructions for initial setup.
• Start Engine: Allow the self-tuning system to calibrate fuel delivery.
• Make Adjustments: Use the handheld controller for any necessary tweaks.

BENEFITS OF USING THE FITECH GO EFI 2×4 ALUMINUM MASTER KIT + IN-LINE FUEL PUMP (31061):

• Improved fuel efficiency compared to traditional carburetors.
• Enhanced engine performance and responsiveness.
• Easier cold starts and smoother idle.
• Automatic fuel adjustments for optimal performance in various conditions.
• Simplified tuning with the handheld controller.
• Complete fuel delivery system included.

FEATURES:

• Dual 4-Barrel Design: Increases airflow for better performance.
• Integrated ECU: Located within one of the throttle bodies for compactness.
• 80 lbs/hr Injectors: Ensures precise fuel delivery for performance needs.
• Included Inline Fuel Pump: 255 LPH pump with filters and hose for complete setup.
• Handheld Touchscreen Controller: For monitoring and making adjustments.
• Wideband O2 Sensor: Provides accurate air-fuel ratio readings.
• Comprehensive Sensors: MAP, IAT, and TPS for detailed engine data.
• Wiring Harness Included: Comes with necessary installation hardware.
• Multi-Fuel Capability: Able to run on various fuel types.
