Description

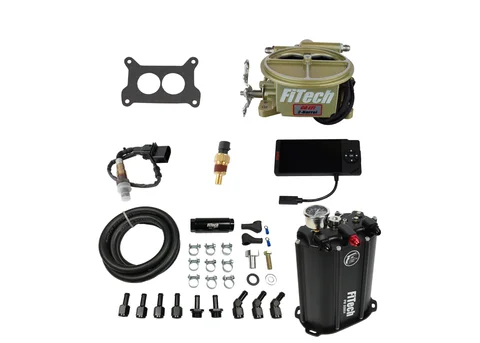

The FiTech Go EFI 2-Barrel 400HP Classic Gold w/Force Fuel (35001) is designed to modernize classic engines by replacing traditional 2-barrel carburetors with electronic fuel injection (EFI). This system aims to provide improved engine performance, better fuel economy, and enhanced drivability. Ideal for various 4, 6, and 8-cylinder engines, it simplifies fuel delivery and tuning, reducing common carburetor-related issues.
KEY FEATURES AND BENEFITS:
- Horsepower Support: Suitable for engines up to 400 horsepower, catering to a range of performance applications.
- Force Fuel System: Streamlines installation by acting as a fuel reservoir and high-pressure pump, eliminating complex fuel line setups.
- Self-Tuning ECU: Automatically adjusts fuel delivery, optimizing performance and fuel efficiency.
- Fuel Compatibility: Works with various fuel types, including gasoline, E-85, alcohol, and methanol.
SPECIFICATIONS:
- Horsepower support: Up to 400 HP
- Fuel pump: 340 LPH electric pump
- Fuel pressure: 58 PSI (integrated regulator)
- Throttle body flange: Holley 2300 2-barrel
- Fuel compatibility: Gasoline, E-85, alcohol, methanol
- ECU: Self-tuning
HOW TO USE:
- Preparation: Disconnect the battery and remove the existing 2-barrel carburetor.
- Installation: Mount the FiTech 35001 throttle body onto the intake manifold using the Holley 2300 flange.
- Force Fuel System: Position the Force Fuel system in a suitable location and connect the fuel lines.
- Wiring: Connect the wiring harness, including the oxygen sensor, coolant temperature sensor, and power supply.
- Sensor Installation: Install the oxygen sensor in the exhaust system and the coolant temperature sensor in the engine.
- Handheld Controller: Connect the handheld controller to the ECU and follow the on-screen instructions for initial setup.
- Initial Start-up: Start the engine and allow the ECU to self-tune the fuel delivery.
- Fine-Tuning: Use the handheld controller to make any necessary adjustments after the initial tuning process.
- Verification: Verify proper operation and fuel pressure.
BENEFITS OF USING THE FITECH GO EFI 2-BARREL 400HP CLASSIC GOLD W/FORCE FUEL (35001):
- Eliminates common carburetor issues such as hesitations and flooding.
- Improves cold start performance and overall engine drivability.
- Provides more consistent and precise fuel delivery.
- Enhances fuel efficiency compared to traditional carburetors.
- Simplifies fuel system installation with the integrated Force Fuel system.
FEATURES:
- Classic Gold Finish: Attractive appearance on the throttle body.
- Integrated Fuel Pump: 340 LPH high-pressure fuel pump included.
- Onboard ECU: Self-tuning electronic control unit for optimal performance.
- Handheld Controller: For monitoring and adjustments.
- Included Sensors: Oxygen sensor and coolant temperature sensor are included.
- Wide Fuel Compatibility: Works with a range of fuel types.
- Throttle Body Flange: Uses a Holley 2300 2-barrel flange.
- Integrated Regulator: Ensures consistent fuel pressure.
