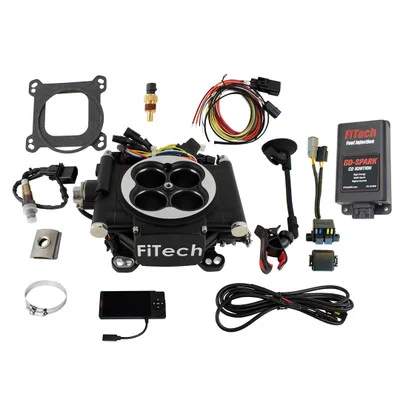

FiTech Go EFI 4 Matte Black Finish 600HP System w/CDI Box (93002)

Description

The FiTech Go EFI 4 Matte Black Finish 600HP System w/CDI Box (93002) provides a modern fuel injection solution for classic carbureted engines. This system offers improved performance, fuel efficiency, and easier starts. Designed for engines up to 600 horsepower, it features an integrated ECU and self-tuning capabilities, simplifying installation and operation.

KEY FEATURES AND BENEFITS:

• Self-Tuning Functionality: Eliminates the need for complex tuning adjustments.
• Integrated ECU: Mounted on the throttle body for simplified wiring and installation.
• Go-Spark CD Ignition Box: Provides comprehensive ignition control.
• 4.5-Inch Touch Screen: Allows for easy setup and on-the-fly adjustments.
• Performance Support: Compatible with engines up to 600 HP and various fuel types, including gasoline, alcohol, methanol, and flex fuel.

SPECIFICATIONS:

• Fuel Injection Style: Throttle body
• Maximum Horsepower: 600 HP
• Timing Control: Yes
• Metering Style: Speed density (MAP-N)
• Throttle Body: 4-barrel square bore, cast aluminum, black finish
• Injectors: 80 lbs/hr
• Sensors: Oxygen, MAP, IAT, TPS, IAC
• ECU: Integrated
• Ignition Box: Go-Spark CD ignition box included
• Display: 4.5-inch touch screen
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Remove Existing Carburetor: Detach the existing carburetor and intake manifold gasket.
• Install FiTech Throttle Body: Mount the FiTech throttle body onto the intake manifold using a new gasket.
• Connect Wiring Harness: Connect the wiring harness to the appropriate sensors and power sources.
• Install Sensors: Mount the oxygen sensor, MAP sensor, IAT sensor, TPS sensor, and IAC motor.
• Connect Ignition Box: Install and connect the Go-Spark CD ignition box.
• Connect Fuel Lines: Connect the fuel lines to the throttle body, ensuring proper fuel pressure. (fuel pump and fuel system not included)
• Initial Setup: Use the hand-held touch screen to input engine specifications and perform the initial setup.
• Start Engine: Start the engine and allow the self-tuning system to adjust fuel delivery.
• Fine-Tune (Optional): Use the touch screen to make any necessary adjustments to the air/fuel ratio or timing.

BENEFITS OF USING THE FITECH GO EFI 4 MATTE BLACK FINISH 600HP SYSTEM W/CDI BOX (93002):

• Improved cold starts and smoother idle.
• Enhanced throttle response for better drivability.
• Increased fuel efficiency compared to traditional carburetors.
• Simplified installation with the integrated ECU.
• Self-tuning capabilities for automatic fuel adjustments.
• On-the-fly adjustments with the hand-held controller.

FEATURES:

• Wide-Band Oxygen Sensor: Utilized for accurate fuel control.
• Adjustable Fan Control Switch: For optimal cooling management.
• Voltage-Controlled Fuel Pump Control: Reduces power usage.
• GM-Type Sensors: Easily replaceable and widely available.
• Wet Flow Swirl Spray Annular Discharge: Enhances atomization for better combustion.
• Designed for Applications: Making at least 6 in. of vacuum at idle.
