Description

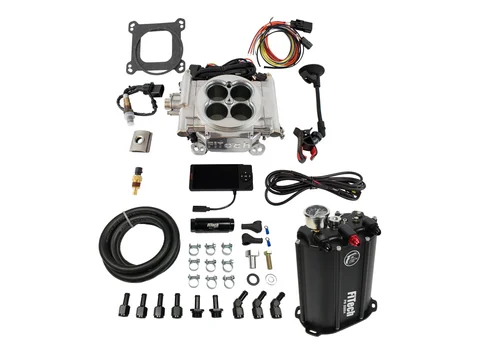

The FiTech Go EFI 4 System 600HP Aluminum Master Kit w/Force Fuel (35201) provides a modern solution for replacing traditional carburetors. Designed for engines producing 250 to 600 horsepower, this kit offers self-tuning capabilities and improved fuel delivery. The included Force Fuel system simplifies installation by integrating a high-pressure fuel pump and regulator, eliminating the need for a new fuel line from the tank.
KEY FEATURES AND BENEFITS:
- Self-Tuning ECU: Automatically adjusts fuel delivery for optimal performance.
- Consistent Fuel Pressure: The Force Fuel system includes a 340 LPH fuel pump and regulator.
- High Airflow Capacity: Throttle body rated for 850 CFM, supporting engines up to 600HP.
- User-Tunable: Allows adjustments to air/fuel ratios and ignition timing.
- Straightforward Installation: Compatible with existing fuel pumps and simple wiring.
SPECIFICATIONS:
- Maximum horsepower: 600 HP (650 HP on gasoline)
- Injection style: Throttle body
- Metering style: Speed density (MAP-N) or speed throttle (Alpha-N)
- Throttle body mounting flange: 4-barrel square bore
- Injector size: 80 lbs/hr
- Airflow rate: 850 CFM
- Fuel pump flow rating: 340 LPH
- Fuel pressure: 58 psi (pre-set)
- ECU included: Yes
- Force Fuel system: Included
HOW TO USE:
- Remove: Take off the existing carburetor and intake manifold.
- Install: Mount the FiTech throttle body onto the intake manifold.
- Mount: Position the Force Fuel system in a suitable location.
- Connect: Attach the wiring harness to the ECU and sensors.
- Install: Place the oxygen sensor in the exhaust system.
- Connect: Link the Force Fuel system to the existing fuel pump.
- Handheld Controller: Connect it to the ECU.
- Start: Begin the engine and allow the system to self-tune.
- Fine-Tune: Use the handheld controller for any desired adjustments.
BENEFITS OF USING THE FITECH GO EFI 4 SYSTEM 600HP ALUMINUM MASTER KIT W/FORCE FUEL (35201):
- Improved fuel efficiency compared to carburetors.
- Enhanced engine performance and responsiveness.
- Simplified installation with the Force Fuel system.
- Self-tuning capability reduces setup time.
- User-tunable for precise adjustments.
- Reliable fuel delivery under various conditions.
FEATURES:
- Integrated Handheld Controller: 4.5 inch display for easy monitoring.
- Fuel Injectors: 80 lbs/hr for efficient fuel delivery.
- Throttle Body Construction: Durable cast aluminum.
- Sensors Included: MAP and IAT sensors.
- Oxygen Sensor Integration: For improved fuel management.
- Internal Fuel Pump: 340 LPH for consistent fuel flow.
- Pre-Set Fuel Pressure Regulator: Maintains 58 psi pressure.
- Fuel Compatibility: Suitable for gasoline, alcohol, methanol, and flex fuel.
