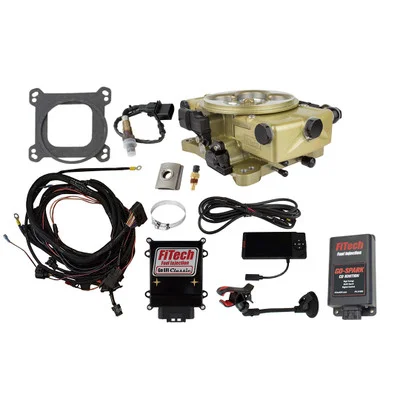

FiTech Go EFI Classic 650HP Gold External ECU w/ CDI Box (93020)

Description

The FiTech Go EFI Classic 650HP Gold External ECU w/ CDI Box (93020) is designed to replace traditional 4-barrel carburetors, providing enhanced performance and fuel efficiency. This system offers a classic aesthetic with its gold-finished throttle body while incorporating modern EFI technology. Ideal for high-performance engines up to 650 horsepower.

KEY FEATURES AND BENEFITS:

• Self-Tuning ECU: Adapts to your driving style, ensuring optimal performance over time.
• User-Tunable System: Allows for manual adjustments to fine-tune your engine’s performance.
• Go-Spark CD Ignition Box: Enhances ignition performance.
• Dual Bolt Pattern: Fits both spread bore and 4150 square bore flanges for versatility.
• Wideband Oxygen Sensor: Enables real-time fuel mapping, ensuring accurate fuel delivery.

SPECIFICATIONS:

• Maximum Horsepower: 650 HP
• Injection Style: Throttle body
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi Quantity: 4
• Venturi Diameter: 44mm
• Airflow Rate: 950 CFM
• Injector Size: 80 lbs/hr
• Fuel Type: Gasoline, Methanol, Alcohol, Flex
• ECU: Included, external mount
• Ignition: Go-Spark CD ignition box included
• Display: 4.5 inch touch screen
• Oxygen Sensor: Bosch LSU 4.2 wideband
• Sensors Included: MAP, IAT, TPS, IAC

HOW TO USE:

• Preparation: Ensure your engine is compatible with a 4150 or spread bore flange. Disconnect the existing carburetor and fuel lines.
• Installation: Mount the FiTech throttle body onto the intake manifold. Connect the included wiring harness to the appropriate sensors and power sources. Install the oxygen sensor in the exhaust system.
• Fuel System: Install your chosen fuel pump and connect fuel lines to the FiTech system. Ensure proper fuel pressure regulation.
• Ignition Setup: Install the Go-Spark CD ignition box and connect it to the distributor and coil.
• ECU Setup: Mount the ECU in a suitable location. Connect the display and power it on.
• Initial Configuration: Use the touch screen display to input engine specifications and initial settings.
• Self-Tuning: Start the engine and allow the system to self-tune. Drive the vehicle under various conditions to allow the ECU to learn.
• Fine-Tuning: If desired, use the display to manually adjust settings for optimal performance.

BENEFITS OF USING FITECH GO EFI CLASSIC 650HP GOLD EXTERNAL ECU W/ CDI BOX (93020):

• Improved Fuel Efficiency: Compared to traditional carburetors.
• Enhanced Engine Performance: Better throttle response.
• Reduced Cold Start Issues: Smoother idle.
• Real-Time Fuel Mapping: For accurate fuel delivery.
• User-Friendly Interface: For easy setup and tuning.
• Classic Look: With modern performance.

FEATURES:

• Dual Bolt Pattern Compatibility: For versatile installation.
• High-Flow Aluminum Throttle Body: Ensures optimal airflow.
• Externally Mounted ECU: For a cleaner look.
• Integrated Ignition Control: With included CD ignition box.
• High-Resolution Touch Screen: For monitoring and adjustment.
• Compatibility with Multiple Fuel Types: Increases versatility.
• 80 lb/hr Injectors: For sufficient fuel delivery.
