Description

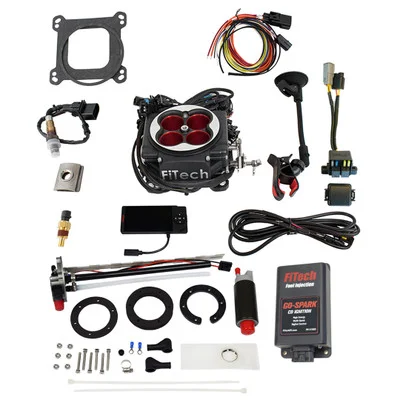

The FiTech Go Port EFI Standalone System w/ In-Tank Pump & CDI Kit (96463) is a comprehensive solution designed to convert carbureted engines to electronic fuel injection (EFI). This kit includes a high-flow 850 cfm throttle body, an in-tank fuel pump, and a Go-Spark CDI ignition box, providing a complete upgrade for improved engine performance and fuel efficiency.
KEY FEATURES AND BENEFITS:
- Complete EFI Conversion: The kit includes all necessary components for a seamless conversion from carburetor to EFI.
- Enhanced Performance: The 850 cfm throttle body and CDI ignition box improve engine response and power output.
- Improved Fuel Efficiency: Electronic fuel injection provides precise fuel metering, resulting in better fuel economy.
- Simplified Installation: The in-tank fuel pump and comprehensive kit components streamline the installation process.
- User Tunable: The included ECU and handheld controller allow for user customization and tuning.
- Power Adder Compatible: Supports forced induction and nitrous applications.
SPECIFICATIONS:
- Fuel Injection Style: Multi-port
- Throttle Body: 850 cfm, 4-barrel square bore
- Fuel Pump: 340 lph in-tank
- Ignition: Go-Spark CDI
- ECU: Included, self-tuning and user-tunable
- Venturi Diameter: 44.00mm
- Fuel Type: Alcohol, Gasoline, Methanol, Flex
- Metering Style: Speed density (Map-N)
HOW TO USE:
- Preparation: Disconnect the battery and remove the existing carburetor and fuel system components.
- Fuel System Installation: Install the in-tank fuel pump module, ensuring proper depth and secure connections. Connect the fuel lines to the throttle body.
- Throttle Body Installation: Mount the 850 cfm throttle body onto the intake manifold using the provided gaskets.
- Sensor Installation: Install the MAP, IAT, and TPS sensors according to the provided instructions.
- Wiring Harness Connection: Connect the wiring harness to the sensors, ECU, and ignition system.
- Ignition System Installation: Install the Go-Spark CDI ignition box and connect it to the distributor and wiring harness.
- ECU Setup: Connect the handheld controller to the ECU and follow the on-screen instructions for initial setup and calibration.
- Testing: Reconnect the battery and start the engine. Use the handheld controller to monitor and adjust engine parameters as needed.
BENEFITS OF USING FITECH GO PORT EFI STANDALONE SYSTEM W/ IN-TANK PUMP & CDI KIT (96463):
- Precise fuel control for optimized engine performance.
- Improved cold start and idle quality.
- Enhanced throttle response and drivability.
- Increased fuel efficiency compared to carbureted systems.
- User-friendly tuning capabilities for customization.
- Complete kit, reducing the need for separate purchases.
FEATURES:
- Integrated ECU: Built within the throttle body.
- In-Tank Fuel Pump Module: Compatible with various tank depths.
- CDI Ignition: Provides multiple sparks at low RPMs.
- 4.5-Inch Touchscreen Controller: Allows easy tuning and monitoring.
- Compatibility: Supports various fuel types.
- 850 CFM Throttle Body: High-flow design for improved performance.
- Speed Density Metering: Uses Map-N system for precise fuel control.
- Oxygen Sensor: Included for accurate air-fuel ratio monitoring.
- Fuel Pressure Regulator: Included for optimal fuel system performance.
