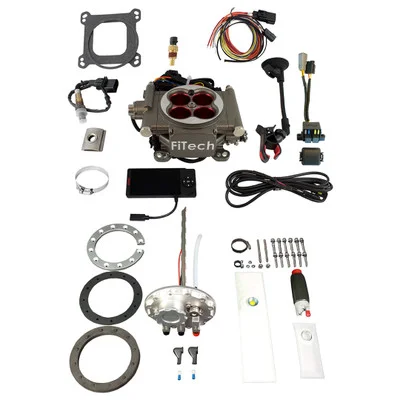

FiTech Go Street 400 HP Cast EFI w/ In-Tank Module (36303)

Description

The FiTech Go Street 400 HP Cast EFI w/ In-Tank Module (36303) offers a complete solution for upgrading from a carburetor to electronic fuel injection. This kit is designed for engines up to 400 horsepower and provides improved fuel efficiency and easier engine starts. It includes a self-tuning ECU mounted on the throttle body, a fuel pump module for in-tank installation, and a hand-held controller for adjustments.

KEY FEATURES AND BENEFITS:

• Performance Upgrade: Supports engines up to 400 HP and is compatible with 4-barrel intake manifolds.
• Built-in Features: Includes a built-in fuel pressure regulator, internal MAP sensor, and hand-held controller for setup and adjustments.
• High Flow Fuel Pump: The included fuel pump module supports up to 800 hp when used alone, with an internal 58 psi regulator.
• Adjustable Settings: Allows for on-the-fly air/fuel ratio changes and features adjustable fan control.
• Accurate Monitoring: Utilizes GM-type sensors and a Bosch 4.2 wideband oxygen sensor for precise readings.

SPECIFICATIONS:

• Maximum Horsepower: 400 HP
• Injection Style: Throttle body
• Metering Style: Speed density (Map-N)
• Throttle Body Mounting Flange: 4-barrel square bore
• Airflow Rate: 850 cfm
• Injector Size: 62 lbs/hr
• Fuel Pump Style: In-tank fuel pump
• Fuel Pump Flow: 340 LPH
• Fuel Pressure Regulation: 58 PSI
• Venturi Diameter: 43mm

HOW TO USE:

1. Install the FiTech throttle body onto your 4-barrel intake manifold.
2. Mount the fuel pump module inside your fuel cell or custom tank.
3. Connect the wiring harness to your 12-volt ignition system.
4. Install the oxygen sensor in the exhaust system.
5. Connect the hand-held controller to the ECU.
6. Use the hand-held controller to enter basic engine parameters.
7. Start the engine and allow the ECU to self-tune.
8. Make adjustments as needed using the hand-held controller.

BENEFITS OF USING THE FITECH GO STREET 400 HP CAST EFI W/ IN-TANK MODULE (36303):

• Improved Fuel Efficiency: Provides better fuel efficiency compared to a carburetor.
• Easier Starts: Facilitates easier engine starts in various weather conditions.
• Self-Tuning ECU: Eliminates the need for manual adjustments, enhancing convenience.
• Complete Kit: Includes a fuel pump module, simplifying the installation process.
• Fine-Tuning: Allows for on-the-fly adjustments for optimal performance.
• Reliable Delivery: Ensures reliable fuel delivery for consistent engine operation.
• Cleaner Operation: Contributes to cleaner engine operation and reduced emissions.

FEATURES:

• Integrated Regulator: Built-in pressure regulator within the throttle body.
• MAP Sensor: Internal MAP sensor for accurate readings.
• Fan Control: Adjustable fan control switches for better temperature management.
• Fuel Inlet Fittings: Utilizes -06 AN fuel inlet fittings for secure connections.
• Data Logging: Hand-held controller equipped with 8GB data logging capability.
• Engine Compatibility: Compatible with 4, 6, and 8-cylinder engines.
• Fuel Pump Module: Includes a 2-inch fuel fill for the pump module.
• E85 Compatibility: Fuel pump module is compatible with E85 fuel.
• OBD II Readouts: Provides OBD II fault code readouts for diagnostics.
