FiTech LS 500 HP EFI Long Intake 340LPH Kit w/ Trans Control (79707)

Description

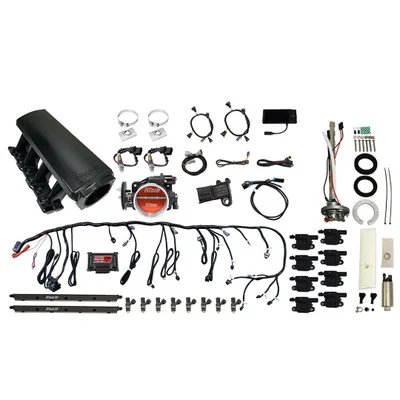

The FiTech LS 500 HP EFI Long Intake 340LPH Kit w/ Trans Control (79707) offers a comprehensive upgrade for LS engines, providing improved fuel delivery and engine control. This kit includes all the necessary components for a complete electronic fuel injection conversion, supporting up to 500 horsepower.

KEY FEATURES AND BENEFITS:

• Multi-Port Injection: Provides electronic fuel injection for LS engines, enhancing performance.
• Long Runner Intake: Features a long runner cathedral intake manifold for optimized airflow.
• Power Support: Supports up to 500 horsepower with gasoline.
• Advanced ECU: Includes a self-tuning and user-tunable ECU for precise engine management.
• Transmission Control: Offers control for 4L60/65/80/85 GM transmissions.
• Fuel Pump: Comes with a 340 LPH in-tank regulated fuel pump for reliable delivery.
• User-Friendly Display: Features a 4.5-inch color touchscreen for easy monitoring and adjustments.
• Sequential Control: Provides sequential fuel and spark control with individual cylinder trim.
• Comprehensive Sensors: Includes all necessary sensors, such as oxygen, MAP, IAT, TPS, and IAC.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Maximum Horsepower: 500 HP
• Throttle Body Size: 92mm
• Injector Size: 36 lbs./hr.
• Fuel Pump: 340 LPH in-tank regulated
• ECU: Included, self-tuning and user-tunable
• Display: 4.5-inch color touchscreen
• Intake Material: Aluminum
• Transmission Control: Yes, for 4L60/65/80/85 GM transmissions

HOW TO USE:

• Prepare the Engine: Remove the existing intake manifold and fuel system.
• Install the Intake: Mount the FiTech long runner cathedral intake manifold onto the engine.
• Mount the Throttle Body: Attach the 92mm throttle body to the intake manifold.
• Install Fuel Rails and Injectors: Mount the fuel rails and install the 36 lbs./hr. injectors.
• Install the Fuel Pump: Place the 340 LPH in-tank fuel pump into the fuel tank.
• Connect Sensors: Install and connect the oxygen, MAP, IAT, TPS, and IAC sensors.
• Connect Ignition Coils: Install and connect the LS3-style ignition coils.
• Install the ECU: Mount the ECU and connect the wiring harness.
• Connect the Display: Connect the 4.5-inch touchscreen display.
• Initial Setup: Follow the on-screen prompts to set up the ECU and perform initial tuning.
• Final Adjustments: After initial running, make any required tuning adjustments using the touchscreen.

BENEFITS OF USING THE FITEC LS 500 HP EFI LONG INTAKE 340LPH KIT W/ TRANS CONTROL (79707):

• Enhanced Performance: Improved engine performance and horsepower.
• Increased Fuel Efficiency: Enhances overall fuel efficiency.
• Precise Management: Self-tuning and user-tunable ECU for effective engine control.
• Easy Monitoring: Touchscreen display for straightforward adjustments.
• Simplified Installation: Comes with a custom wiring harness for easy setup.
• Reliable Delivery: Ensures reliable fuel delivery with the included 340 LPH in-tank pump.
• Integrated Control: Provides integrated transmission control for improved drivability.

FEATURES:

• Durable Intake Manifold: Fabricated 3mm thick aluminum sheet metal for strength.
• Throttle Body: Cast, cable-activated billet aluminum 92mm throttle body.
• Handheld Controller: Comes with a color touch screen and cable.
• Windshield Mount: Included for the touch screen controller.
• LS ECU: Included with a 3-Bar MAP sensor.
• High Volume Fuel Rails: Designed for optimal fuel delivery.
• Sensor Compatibility: Connects to 24x and 58x cam sensors.
• Knock Sensor Control: Integrates with factory sensors for safety.
• Tach Output Driver: Works with most tachometers for RPM readings.
• Programmable Electric Fan Outputs: Two outputs for managing electric fans.
• WBO2 Sensors Included: For precise air-fuel ratio monitoring.
• Custom Wiring Harness: Facilitates direct plug-in installation.
• Ignition Coils: 8 LS3 style ignition coils with LED indicators included.
