FiTech LS 500HP EFI Short Intake w/ Regu Pump, TC & Master Kit (76602)

Description

The FiTech LS 500HP EFI Short Intake w/ Regu Pump, TC & Master Kit (76602) is a comprehensive electronic fuel injection (EFI) system designed for LS series engines, providing a complete solution for those looking to convert from carbureted setups or upgrade their existing fuel injection. This kit is engineered for performance, supporting up to 500 horsepower and accommodating power adders such as turbochargers, superchargers, and nitrous oxide. It includes all necessary components for a seamless installation, from the intake manifold and throttle body to the ECU, fuel pump, and sensors.

KEY FEATURES AND BENEFITS:

• The FiTech 76602 offers multi-port fuel injection for precise fuel delivery, ensuring optimal engine performance and efficiency.
• It is compatible with various fuel types, including gasoline, alcohol, methanol, and flex fuel, providing flexibility for different applications.
• The system includes electronic transmission control, making it ideal for LS engine swaps with electronic transmissions.
• With a 92mm throttle body delivering 1250 cfm airflow, this kit supports high-performance applications.
• The inclusion of a self-contained ECU and calibration module simplifies tuning, while the in-tank fuel pump and fuel pressure regulator ensure consistent fuel delivery.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Timing Control Compatible: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank)
• Transmission Controller Included: Yes
• Metering Style: Speed density (Map-N)
• Intake Manifold Material: Aluminum (Black Anodized)
• Throttle Body: 92mm (1250 cfm)
• Injectors: 36 lbs/hr
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
• Intake Installation: Install the FiTech 76602 intake manifold onto the LS engine, ensuring proper gasket placement and torque specifications.
• Throttle Body and Injector Installation: Mount the 92mm throttle body and install the 36 lbs/hr injectors into the manifold.
• Fuel System Setup: Install the in-tank fuel pump and connect the fuel pressure regulator. Run fuel lines to the fuel rails.
• Sensor Installation: Install the MAP, IAT, and TPS sensors, and the oxygen sensor in the exhaust system.
• Wiring Harness Connection: Connect the wiring harness to all sensors, injectors, fuel pump, and ECU.
• ECU and Transmission Control Connection: Mount the ECU and connect the transmission controller wiring.
• Calibration: Use the calibration module to set initial parameters.
• Testing: Reconnect the battery, start the engine, and verify proper operation.
• Final Tuning: Make any necessary adjustments using the calibration module.

BENEFITS OF USING THE FITECH LS 500HP EFI SHORT INTAKE W/ REGU PUMP, TC & MASTER KIT (76602):

• Simplified LS engine EFI conversion.
• Improved fuel efficiency and performance.
• Enhanced engine control with electronic transmission compatibility.
• Support for high-horsepower applications and power adders.
• Flexibility with multiple fuel types.
• Simplified tuning.

FEATURES:

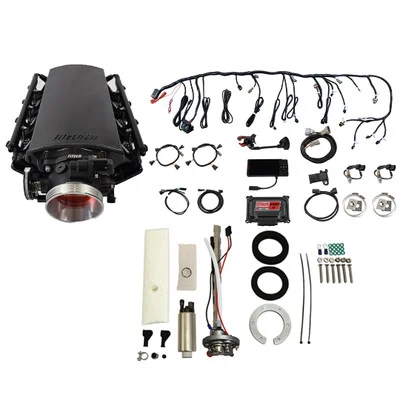

• Complete kit including intake, throttle body, and all necessary sensors.
• Integrated electronic transmission control.
• In-tank fuel pump and fuel pressure regulator for consistent fuel delivery.
• Speed density (MAP) based fuel calculations.
• 36 lb/hr fuel injectors.
• Compatibility with multiple fuel types.
• Black anodized intake manifold.
• Calibration module included.
