Description

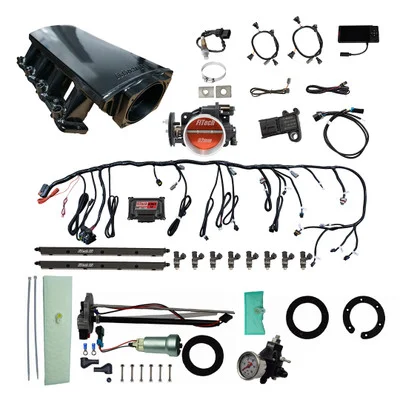

The FiTech LS 500HP EFI w/ LS3 Intake, Pump & Regulator (76111) offers a comprehensive solution for upgrading your LS engine. This kit delivers enhanced performance and fuel efficiency, simplifying the transition to electronic fuel injection. The system includes a complete set of components, designed for easy installation and reliable operation.
KEY FEATURES AND BENEFITS:
- High Power Output: Designed for LS engines aiming for up to 500 horsepower.
- Self-Learning ECU: Simplifies tuning for optimal performance.
- Efficient Fuel Delivery: Includes an in-tank 440 LPH fuel pump module.
- Enhanced Airflow: Features a 92mm throttle body and high-volume fuel rails.
- Powerband Performance: Intake manifold designed for a 1,500 to 6,500 RPM powerband.
- User-Friendly Interface: Touchscreen controller allows for easy adjustments and monitoring.
SPECIFICATIONS:
- Maximum Horsepower: 500 HP
- Injection Style: Multi-port
- Fuel Pump Flow Rating: 440 LPH
- Throttle Body Size: 92mm
- Injector Size: 36 lbs./hr.
- ECU: Self-learning
- Intake Manifold Material: Aluminum
- Fuel System: In-tank pump module
HOW TO USE:
- Remove Existing Components: Take off the existing intake and fuel system from your LS engine.
- Install New Components: Install the FiTech intake manifold and throttle body.
- Fuel Pump Installation: Mount the in-tank fuel pump module in your fuel tank.
- Connect Fuel Lines: Connect the fuel lines and wiring harness according to the instructions.
- Oxygen Sensor Installation: Install the oxygen sensor in the exhaust system.
- Controller Setup: Connect the touchscreen controller and power on the system.
- ECU Initialization: Follow the on-screen prompts to set up the ECU and start the engine.
- Self-Learning Process: Allow the self-learning ECU to optimize fuel and timing.
- Fine-Tuning: Make adjustments as needed using the touchscreen controller.
BENEFITS OF USING THE FITECH LS 500HP EFI W/ LS3 INTAKE, PUMP & REGULATOR (76111):
- Simplified Transition: Eases the upgrade to EFI, providing improved performance and fuel efficiency.
- Reduced Complexity: The self-learning ECU minimizes the need for complex tuning.
- Reliable Fuel Delivery: The in-tank fuel pump module ensures consistent fuel supply.
- Long-Term Performance: High-quality components for durability and reliability.
FEATURES:
- Corrosion Resistance: Black anodized aluminum components for durability.
- Accurate Monitoring: Bosch wideband oxygen sensor for precise air-fuel ratio readings.
- Sensor Compatibility: Compatible with 24X and 58X crank and cam sensors.
- Simplified Installation: Plug-and-play wiring harness for easy setup.
- Data Logging: Touchscreen controller with data logging capabilities.
- Enhanced Fuel Integrity: AN fittings and fuel crossover for superior fuel system integrity.
- Vacuum Maintenance: Designed for applications maintaining 6 inches of vacuum at idle.
